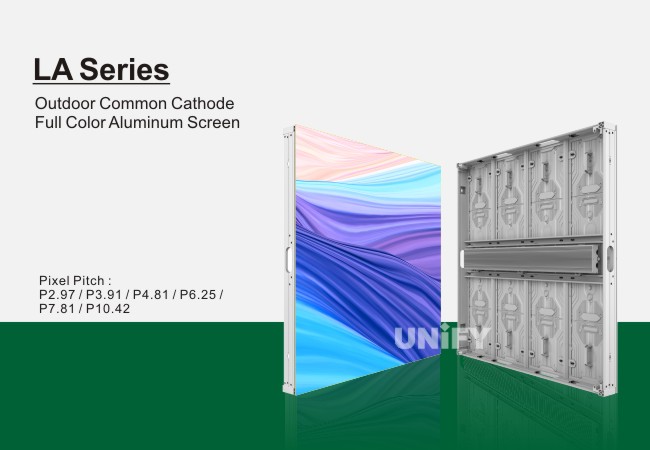

LA Series
1000*1000mm LED Advertising Billboard
- Module size 500*250mm, 1m*1m large size panel
- Optimized structure, flexible installation
- Common cathode energy saving
- High protection, not afraid of harsh environment
Shenzhen UnifyLED Technology Co., Ltd. is a professional LED screen manufacturer offering a comprehensive range of high-quality display solutions. The LA Series LED Advertising Billboard is our flagship outdoor fixed-installation display, built around a 1000×1000mm aluminum cabinet that is 20% lighter than traditional iron structures. We adopted common cathode power supply technology to reduce screen temperature by 14.6°C and cut power consumption by over 20%, delivering real operational savings for 24/7 outdoor use.
Each cabinet is engineered to IP66 protection standards and tested from -40°C to 80°C for reliable performance in harsh environments. With 7680Hz refresh rate, 16-bit grayscale, dual front-and-rear maintenance, and 90° corner splicing for naked-eye 3D content, the LA Series is purpose-built for durable, energy-efficient outdoor advertising backed by a 100,000-hour lifespan.
1000*1000mm LED Advertising Billboard — 500×250mm Module, 1m² Cabinet Design
Optimized for large-scale outdoor billboards, the LA Series features a 1000×1000mm cabinet for rapid installation and industry-standard 500×250mm modules for cost-effective maintenance. Its robust, weather-resistant design delivers high-brightness performance, making it the perfect, reliable solution for massive commercial advertising projects. This modular approach makes the 1000*1000mm LED advertising billboard the fastest large-format outdoor display to deploy.

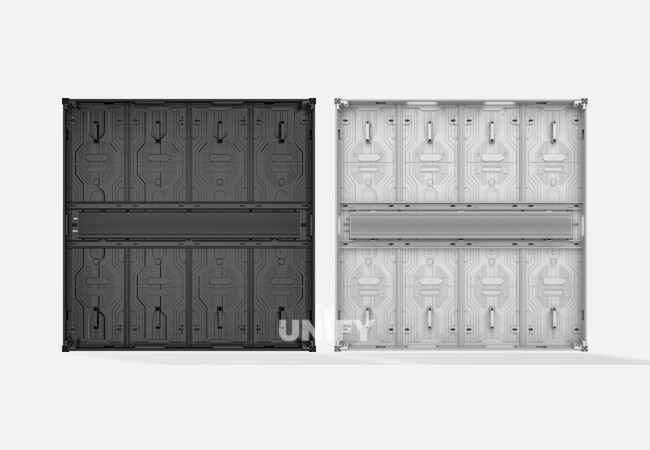

High-Precision Modular Design of the 1000*1000mm LED Advertising Billboard
The 1000*1000mm LED advertising billboard LA Series adopts a standard 1m × 1m cabinet structure. Its modular design allows seamless splicing and flexible expansion according to project size and site conditions.
Users can customize cabinet dimensions to meet specific installation needs, ensuring optimal visibility and maximum advertising impact. Available in Aurora Black and Moon White, the LA Series offers a refined finish that complements both indoor and outdoor applications while maintaining superior display consistency and durability.

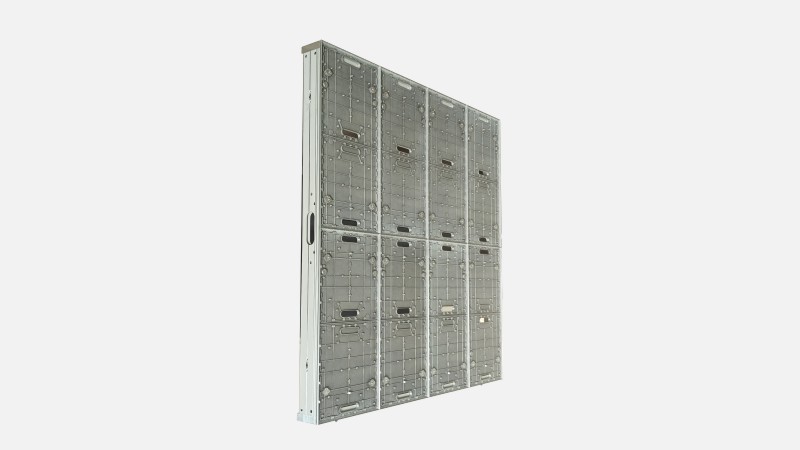

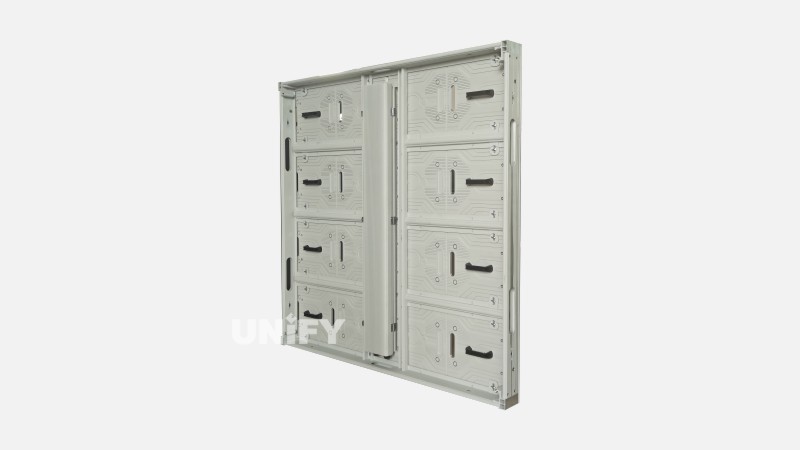

Lightweight Aluminum Cabinet of the 1000*1000mm LED Advertising Billboard
The 1000*1000mm LED advertising billboard adopts a high-strength aluminum profile cabinet, ensuring excellent flatness and a lightweight structure for easier installation and maintenance. Compared with traditional iron cabinets, it is 20% lighter per square meter, effectively reducing transportation and handling costs while maintaining exceptional durability and stability.

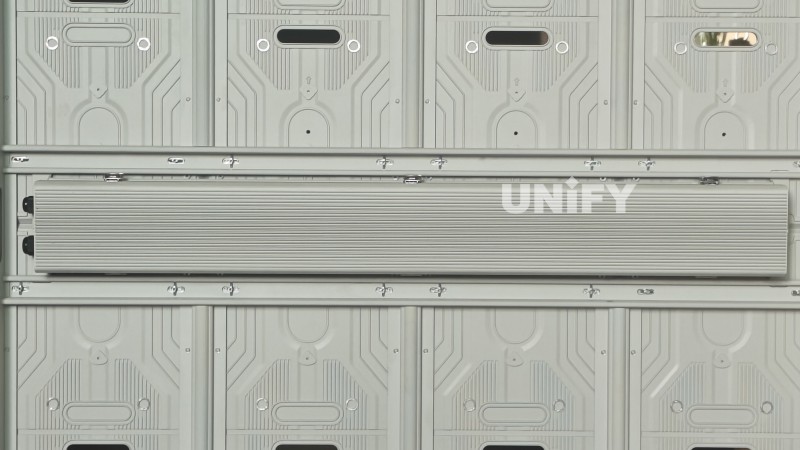

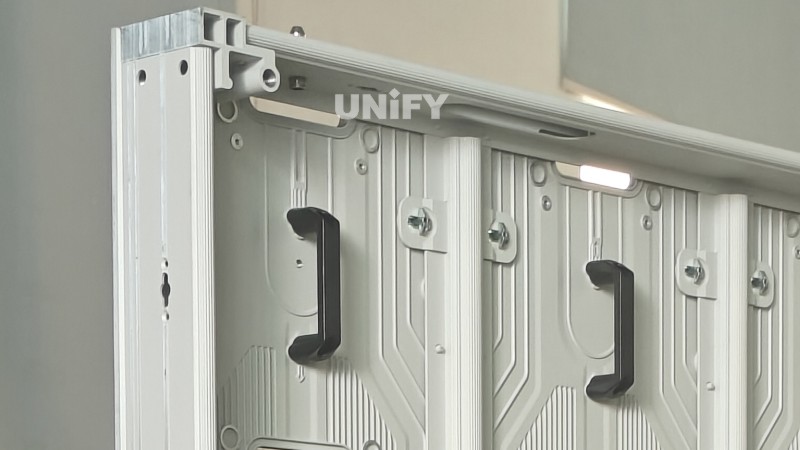

High-Precision Die-Cast Aluminum Module for the 1000*1000mm LED Advertising Billboard
The LA Series Outdoor LED Billboard utilizes high-precision die-cast aluminum modules featuring a solid yet lightweight structure. Each module is equipped with hard connection interfaces, ensuring stable screen assembly and reliable signal transmission across the entire display.
A built-in ergonomic handle design simplifies on-site installation and daily maintenance, significantly improving operational efficiency and reducing maintenance time, ensuring the 1000*1000mm LED advertising billboard maintains stable signal transmission across the entire display.
Available Pixel Pitches for the 1000*1000mm LED Advertising Billboard
P2.976 - LED Advertising billboard
P3.91 - Outdoor LED billboard
P4.81- Advertising LED screen
P6.25 - LED Advertising billboard
P7.8 - Outdoor LED billboard
P10 LED Advertising billboard

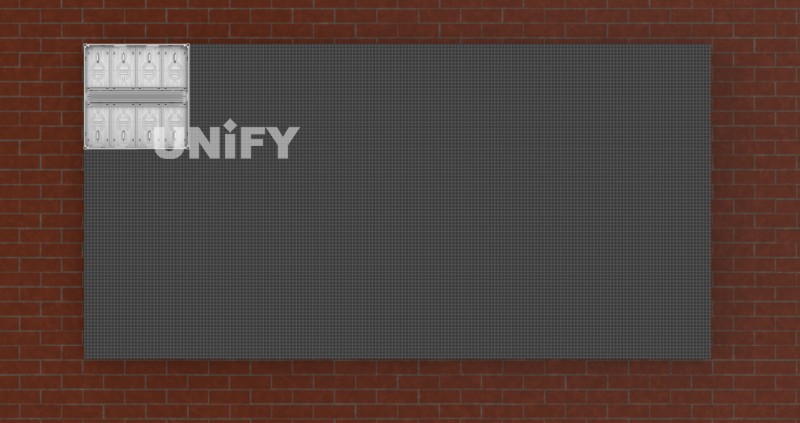

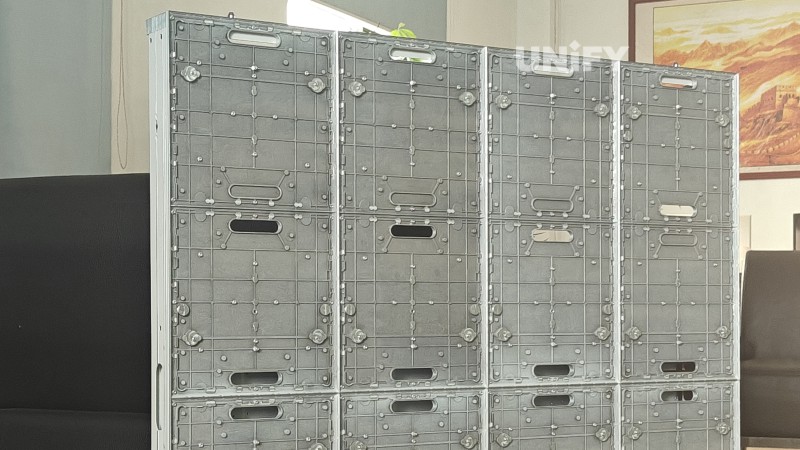

Dual Front & Rear Maintenance on the 1000*1000mm LED Advertising Billboard
The LA series outdoor display adopts a modular design, including modules, cabinets and power boxes, ensuring hard connection, significantly shortening the splicing and assembly time.
At the same time, it provides front and rear maintenance options and supports wall installation, further reducing the structural cost, further reducing the structural cost of the 1000*1000mm LED advertising billboard installation.
At the same time, it provides front and rear maintenance options and supports wall installation, further reducing the structural cost, further reducing the structural cost of the 1000*1000mm LED advertising billboard installation.

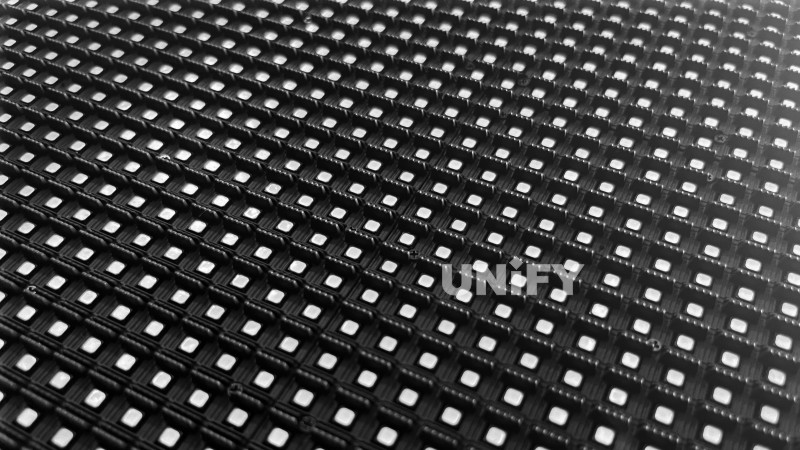

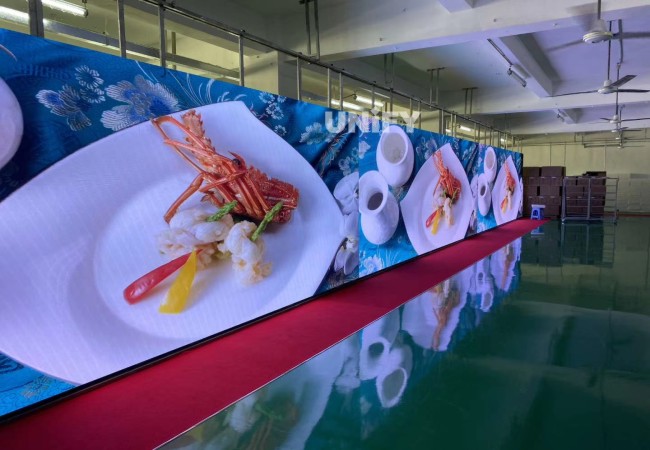

Excellent Picture Quality on the 1000*1000mm LED Advertising Billboard
LA series has the function of blanking on and off the columns, improving the dark first row, improving the low gray color cast and pitting.
The refresh rate is up to 7680Hz, 16-bit grayscale, high contrast, delicate and realistic pictures, uniform brightness and no glare. The red, green and blue three-in-one LED lamp beads provide good consistency.increasing the safety factor, ensuring the 1000*1000mm LED advertising billboard delivers uniform brightness with no glare.
The refresh rate is up to 7680Hz, 16-bit grayscale, high contrast, delicate and realistic pictures, uniform brightness and no glare. The red, green and blue three-in-one LED lamp beads provide good consistency.increasing the safety factor, ensuring the 1000*1000mm LED advertising billboard delivers uniform brightness with no glare.
Green Energy-Saving Technology in the 1000*1000mm LED Advertising Billboard
The LA Series 1000*1000mm LED advertising billboard uses common cathode power supply technology, reducing the screen temperature by 14.6℃ and reducing power consumption by more than 20%.
The intelligent energy-saving system supplies power according to demand, automatically shuts down in no-load mode, and the black screen standby current is only 0.6mA, and the full-screen static power consumption is reduced to 0.5mA.
The split power supply further reduces the voltage drop and conduction impedance, ensuring high efficiency and low energy consumption, suitable for long-term outdoor use.
The intelligent energy-saving system supplies power according to demand, automatically shuts down in no-load mode, and the black screen standby current is only 0.6mA, and the full-screen static power consumption is reduced to 0.5mA.
The split power supply further reduces the voltage drop and conduction impedance, ensuring high efficiency and low energy consumption, suitable for long-term outdoor use.
Multiple Heat Dissipation Designs in the 1000*1000mm LED Advertising Billboard
LA series adopts double-layer power layout for stable operation. Modular aluminum structure and heat dissipation channel effectively reduce temperature.
No additional air conditioning is required, saving operation and maintenance costs and extending equipment life, extending the 1000*1000mm LED advertising billboard equipment life in tropical and desert climates.
No additional air conditioning is required, saving operation and maintenance costs and extending equipment life, extending the 1000*1000mm LED advertising billboard equipment life in tropical and desert climates.
Stable IP66 Protection on the 1000*1000mm LED Advertising Billboard
The LA Series features multi-layer waterproofing with IP66 protection and a corrosion-resistant full aluminum cabinet.
With excellent flatness, fire resistance, and a wide operating range from -40°C to 80°C, it performs reliably in harsh coastal environments for all-weather outdoor use, ensuring the 1000*1000mm LED advertising billboard performs reliably in harsh coastal environments.
With excellent flatness, fire resistance, and a wide operating range from -40°C to 80°C, it performs reliably in harsh coastal environments for all-weather outdoor use, ensuring the 1000*1000mm LED advertising billboard performs reliably in harsh coastal environments.
Naked-Eye 3D on the 1000*1000mm LED Advertising Billboard
The LA Series 1000*1000mm LED advertising billboard supports 90° seamless corner splicing, and the images are naturally connected without any breaks at the corners.
With professional content playback, it can easily achieve naked-eye 3D display to attract attention.
With professional content playback, it can easily achieve naked-eye 3D display to attract attention.

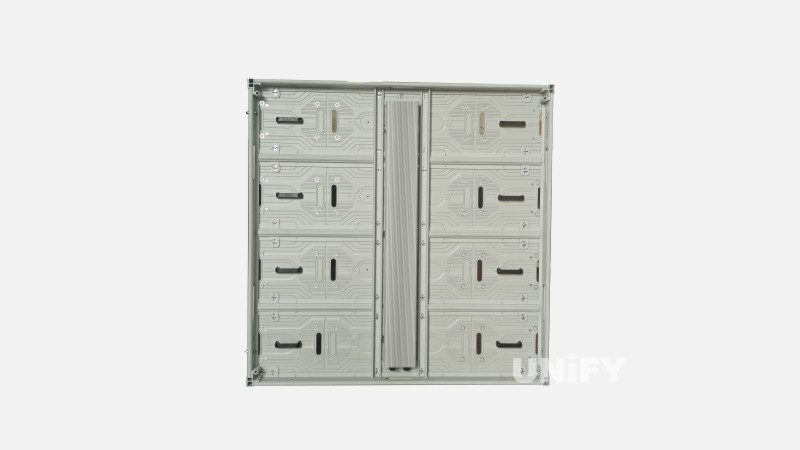

1000*1000mm LED Advertising Billboard Details
Video Center
How to Use or Maintain?
3.84×2.88m Outdoor double-pole LED display, Malaysia
130sqm Curved 3D naked-eye LED wall, Mexico
Case sharing of large-scale event hoisting and leasing LED display screens
10m×5m outdoor embedded LED video wall, Singapore
6*2.5m outdoor single-pole billboard, China
200-square-meter concert truss-mounted LED display, United States

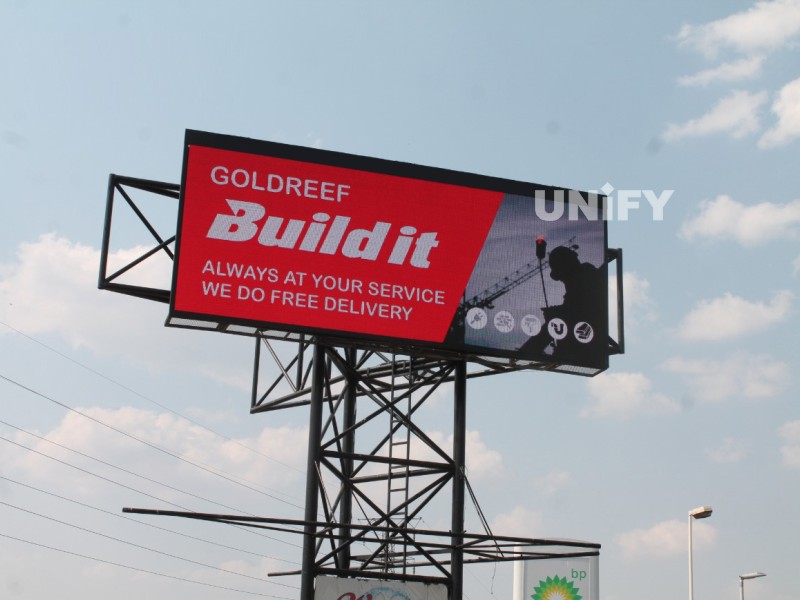

Case Gallery

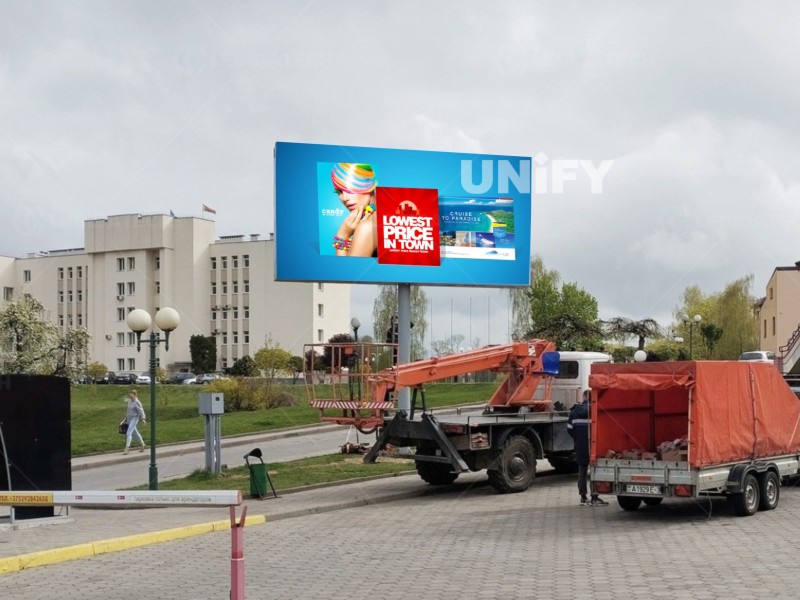

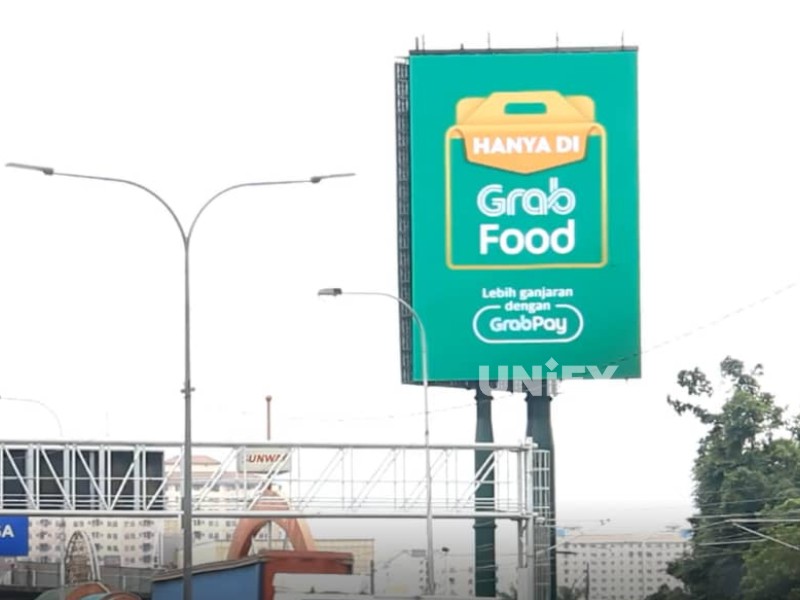

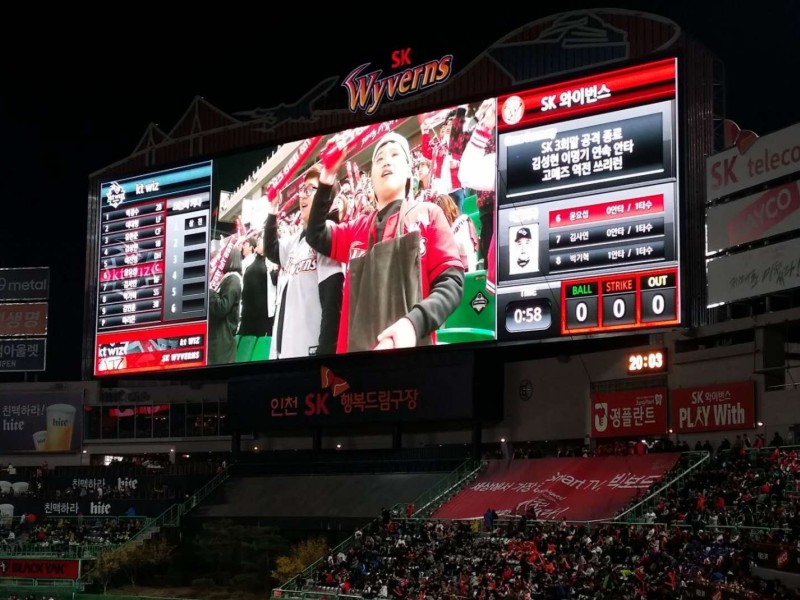

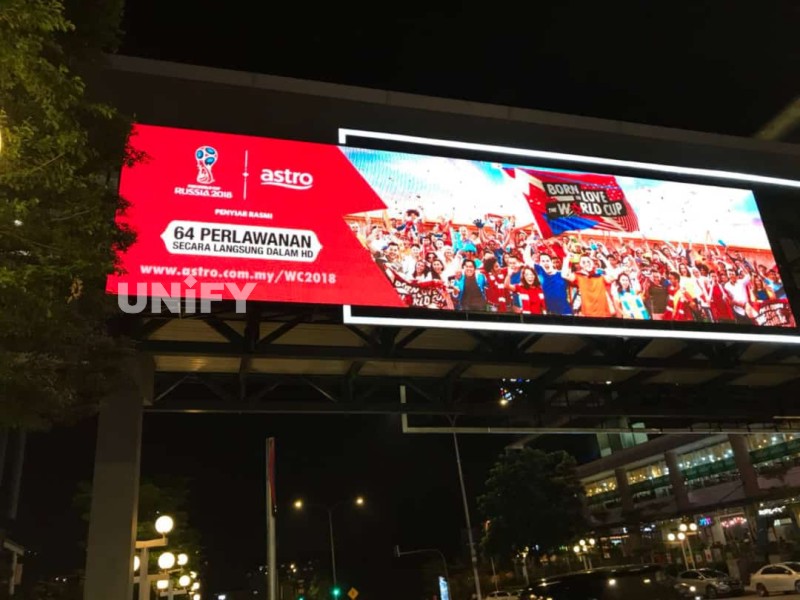

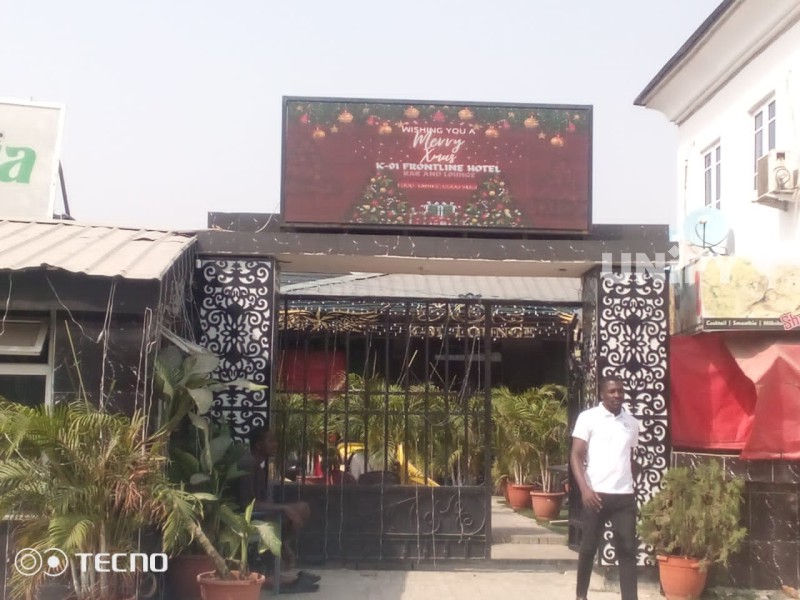

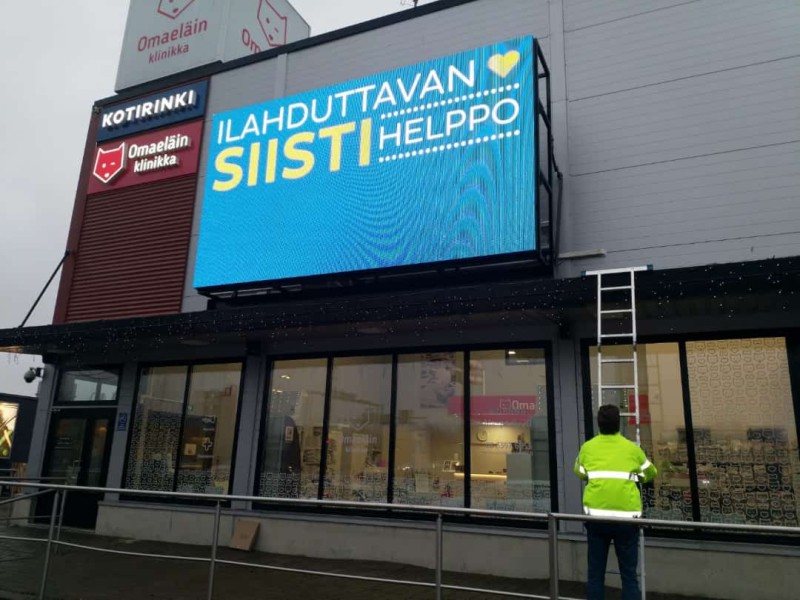

Where Is the 1000*1000mm LED Advertising Billboard Used?
1000*1000mm LED Advertising Billboard — LA Series Specifications
|
Item |
LA2.97 |
LA3.91 |
LA4.81 |
LA6.25 |
LA7.81 |
LA10.42 |
|
Pixel Composition(SMD) |
1415 |
1921 |
1921 |
2727 |
2727 |
2727 |
|
Pixel Pitch(mm) |
2.97 |
3.91 |
4.81 |
6.25 |
7.81 |
10.42 |
|
Module Resolution(W×H) |
84×168 |
64×128 |
52×104 |
40×80 |
32×64 |
24×48 |
|
Module Size(mm) |
500×250×16 |
|||||
|
Module Weight(kg) |
1.93 |
|||||
|
Module Qty/Cabinet(W×H) |
4×2 |
|||||
|
Cabinet Resolution(W×H) |
336×336 |
256×256 |
208×208 |
160×160 |
128×128 |
96×96 |
|
Cabinet Size(mm) |
1000×1000×78 |
|||||
|
Cabinet Area(㎡) |
1 |
|||||
|
Cabinet Weight(kg/cabinet) |
25 |
|||||
|
Cabinet Material |
Profile Cabinet |
|||||
|
Cabinet Density（dot/m²） |
112,896 |
65,536 |
43,264 |
25,600 |
16,384 |
9,216 |
|
IP Rating |
IP66 |
|||||
|
White Balance Brightness(nits) |
≥5000 |
≥5500 |
≥5500 |
≥5500 |
≥5500 |
≥5500 |
|
Color Processor(bit) |
6 |
|||||
|
Color Temperature(K) |
6500-9000 |
|||||
|
Visual Angle(H/V) |
140°/ 120° |
|||||
|
Luminous point centre deviation |
＜3% |
|||||
|
Luminance uniformity |
≥97% |
|||||
|
Chromaticity uniformity |
Within ±0.003Cx, Cy |
|||||
|
Contrast Ratio |
8000:1 |
|||||
|
The Max Power Consumption(W/㎡) |
550 |
550 |
550 |
550 |
550 |
550 |
|
Average Power Consumption(W/㎡) |
186 |
186 |
186 |
186 |
186 |
186 |
|
Input Voltage |
AC100~240V |
|||||
|
Frequency(Hz) |
50&60 |
|||||
|
IC Driving(s) |
1/14 |
1/8 |
1/7 |
1/5 |
1/4 |
1/2 |
|
Refreshing Ratio(Hz) |
3840/7680 |
|||||
|
Maintenance Method |
Front and Rear |
|||||
|
Lifespan(hrs) |
100,000 |
|||||
|
Work Temperature/Humidity |
-40℃-80℃/10%RH-98%RH (Non Condensing) |
|||||
|
Storage Temperature/Humidity |
-20℃-60℃/10%RH-98%RH (Non Condensing) |
|||||
