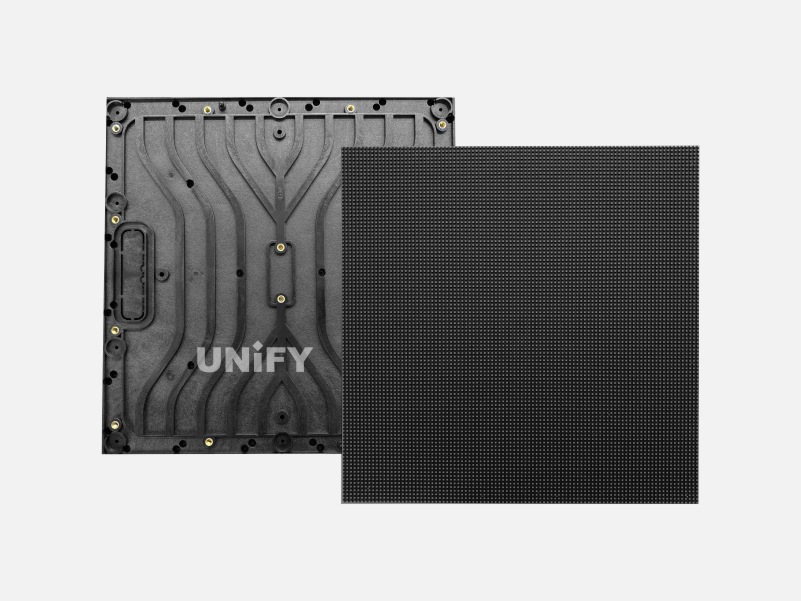

Rental P2.6 LED Display Module
At Shenzhen UnifyLED Technology Co., Ltd., a professional p2.6 LED screen module manufacturer, we engineer the P2.6 LED module — a premium rental LED module with a 2.604mm pixel pitch. Designed with this small pixel pitch, the module is highly suitable for indoor use with a minimum viewing distance of 2 meters, bringing exceptionally fine and high-definition images to any screen. Consequently, it is gradually becoming one of the mainstream pixel pitches for indoor applications.
P2.6 LED Module for rental stage
- Pixel Pitch: 2.604mm
- Module Size: 250*250mm
- RGB Full color for indoor &outdoor use
- Module Resolution: 96*96
- Lamp brand: Nationstar/Kinglight/Rayshine
- Refresh rate: 3840hz
- 2 Years Warranty
Key Features:
High-quality lamp beads
P2.6 LED modules usually use high-brightness and high-consistency SMD1010 or SMD1515 packaged lamp beads, which have strong anti-ultraviolet and moisture-proof capabilities to ensure bright colors.
High refresh rate driver IC
Matched with mainstream high-refresh ICs, such as ICN2038S, MBI5124, etc., it supports a refresh rate of ≥3840Hz, effectively eliminating scan lines and flicker.
Stable performance
The lamp beads work well with the IC card, the control system drive is stable, the color difference is small, and the color temperature is balanced, ensuring the overall consistency and visual comfort of the screen.
Front/rear maintenance
The P2.6 module can be equipped with optional magnetic structure or quick-release design, supporting front/rear maintenance
Compatible with various sizes of cabinets
P2.6 LED module is suitable for rental LED cabinets such as 500×500mm, 500×1000mm, etc.
Adaptable to various control systems:
Compatible with mainstream systems such as Novastar and Colorlight, easy to upgrade and replace.
P2.6 or P3.9?

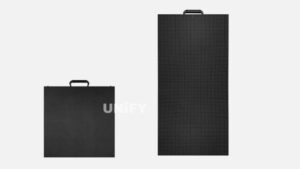

P2.6 LED module Cabinet
P2.6 LED module Control System
Accessories
Power Cable
Receiver card
P2.6 LED Module Specifications
| Item | Specification |
|---|---|
| Pixel Pitch | 2.604 mm |
| LED Type | SMD1515 (or SMD1010, depending on config) |
| Module Resolution | 96 × 96 pixels |
| Module Size | 250 × 250 mm |
| Module Density | 147,456 pixels/m² |
| Brightness | ≥ 800–1000 nits (indoor) |
| Refresh Rate | ≥ 3840 Hz |
| Gray Scale | 14–16 bits |
| Viewing Angle | 160° (H) / 160° (V) |
| Drive Mode | 1/32 Scan |
| Maintenance | Front or Rear Service |
| Power Consumption (Max) | ≤ 800 W/m² |
| Power Consumption (Avg) | ≤ 300 W/m² |
| Module Weight | ~0.6–0.8 kg |
| Working Voltage | DC 5V |
| Frame Material | ABS / Injection Molded Plastic |
| Applications | Indoor fixed display / rental screen |
| Control System | Novastar, Colorlight, Linsn, Huidu |
| Lifespan | ≥ 100,000 hours |
| Operating Temperature | -10°C ~ +40°C |
| Humidity | 10% ~ 90% RH (non-condensing) |
| Certifications | CE, RoHS, FCC |
Image Gallery

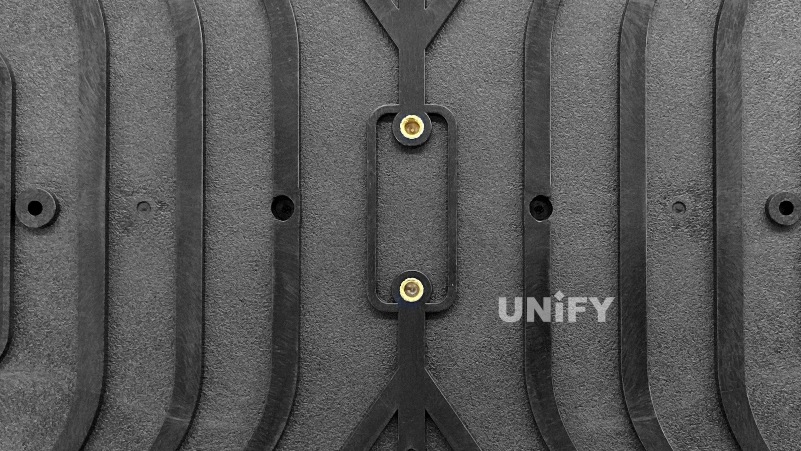

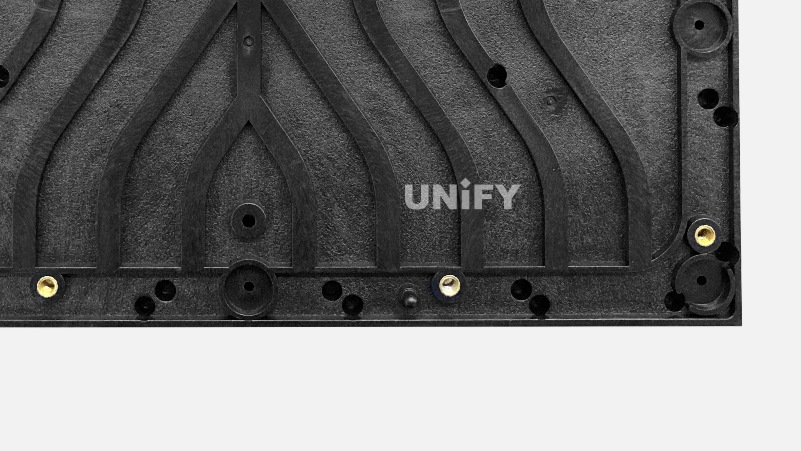

P2.6 LED Module Details

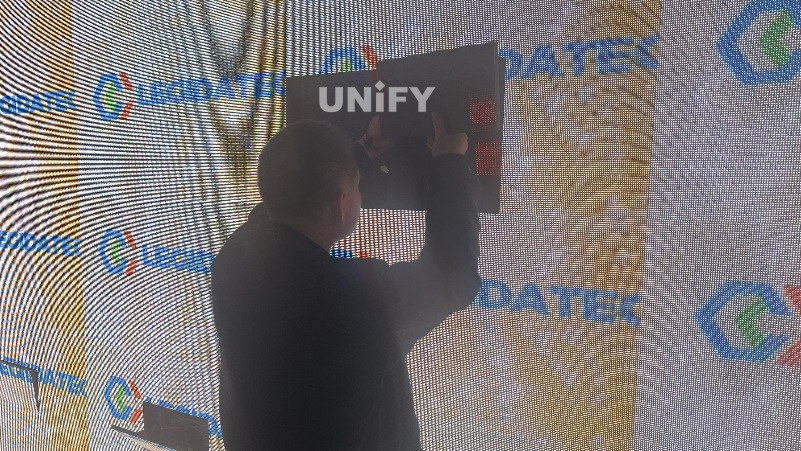

P2.6 LED Module Cases
P2.6 is the small pixel pitch of stage LED screen modules and is often used in places that require high clarity and color reproduction, such as large indoor performance stages, corporate annual meetings, etc.
FAQs:
P2.6" stands for a pixel pitch of 2.6 mm, meaning the distance between adjacent LED pixel centers is 2.6 mm. This small pitch delivers high resolution suitable for indoor close-up viewing.
A standard P2.6 module typically measures 250 × 250 mm with a resolution of 96 × 96 pixels, giving around 147,456 pixels/m².
Refresh rates are typically ≥3840 Hz, ensuring flicker-free video playback; gray scale depth is usually 14–16 bits, allowing smooth color transitions.
Recommended viewing starts from 3 meters, depending on pitch and screen size; ideal for close-to-medium indoor environments.
P2.6 is the pixel pitch of stage rental screens, and P2.5 is the pixel pitch of indoor fixed installation screens. Although the two have little difference in pixel pitch, the corresponding cabinets and usage scenarios are completely different.
