P5 LED Module for Outdoor
- Pixel Pitch: 5mm， suitable for medium-distance viewing outdoors
- Module Size: 320mm x 160mm x 15mm / 12.5” x 6.2” x 0.6”
- Module Resolution: 32*16
- CE,RoHS,FCC Approved
- R1G1B full-color LED screen panel
- Refresh rate 3840Hz, flicker-free
- Brightness ≥ 4,500 nits. Clearly visible in sunlight

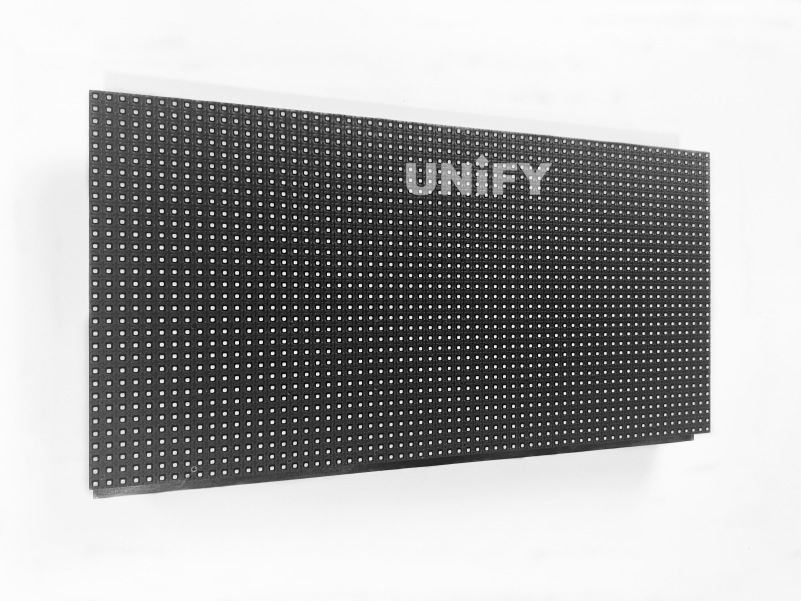

The P5 LED module is a outdoor LED display module with a pixel pitch of 5 mm, suitable for high-definition display needs at medium and long distances.
Its core components include LED chips, modules, control cards, power supplies, etc. to ensure high-quality display effects.
Common applications include outdoor advertising, Public Information Screen and sports events. The P5 LED module provides clear and delicate images, suitable for a wide range of audiences.
P5 LED Module Details

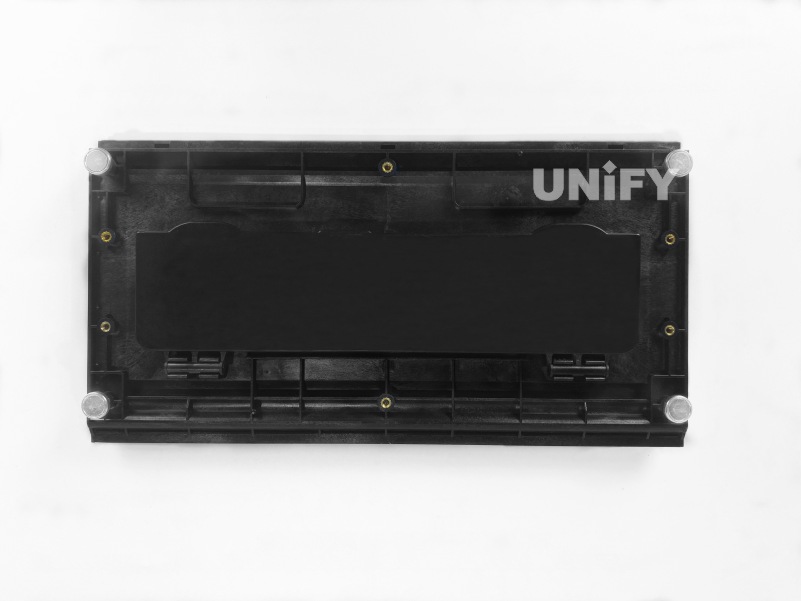

Fully enclosed back cover
The closed fully enclosed back cover greatly enhances the protection and effectively prevents rain and dust from entering the module and damaging the electronic components. Extends the service life of the module.

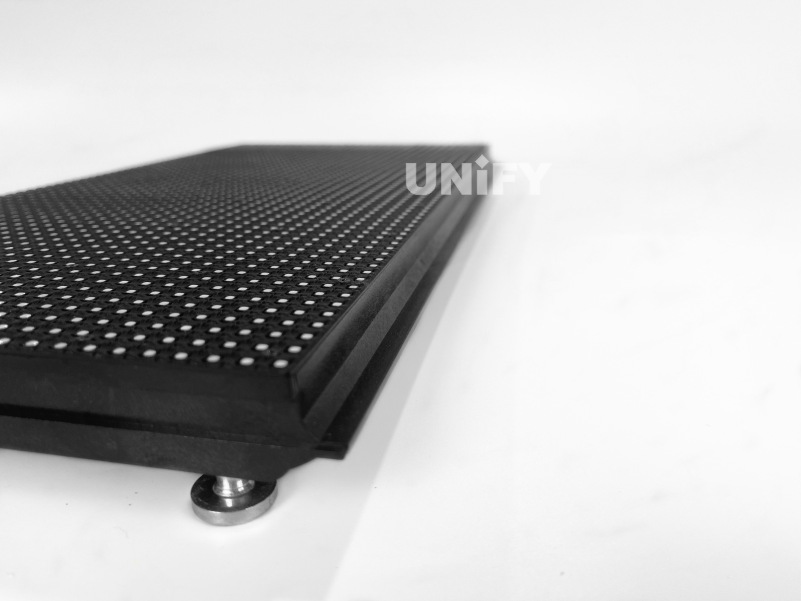

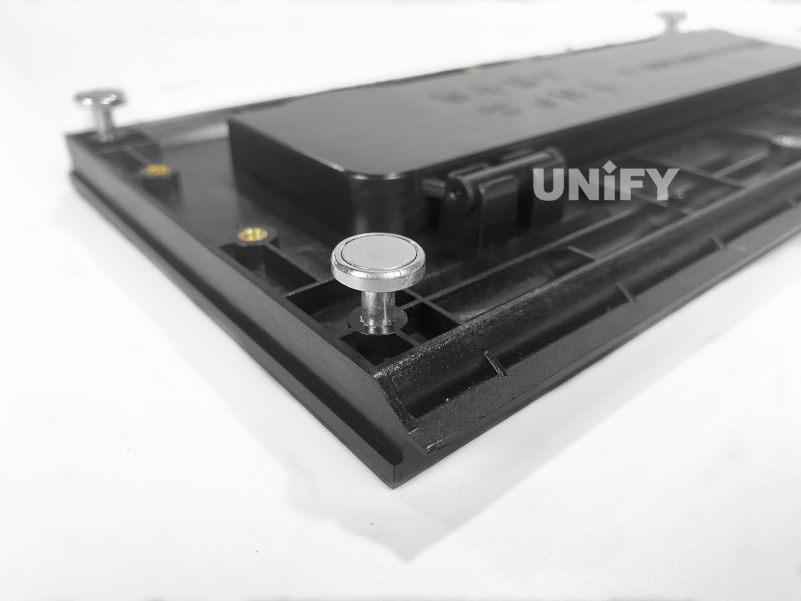

Magnetic LED Module
This magnetic P5 LED module can be directly adsorbed on the structure and used alone to become the smallest unit of modular box, which is easy to install and maintain.
Waterproof groove
A small groove is designed on the back of the P5 LED module so that rainwater can flow away and will not get stuck behind the module, protecting the electronic parts inside.
This design can also greatly reduce the rust problem caused by accumulated water, allowing the module to last longer.
This design can also greatly reduce the rust problem caused by accumulated water, allowing the module to last longer.
Key Features
High protection level
The sealed back cover is combined with waterproof rubber ring and sealed interface design, with IP65 waterproof and dustproof capabilities
Magnetic installation structure
Strong magnet adsorption method, supports full front maintenance, suitable for wall inlay, column billboard and other scenes.

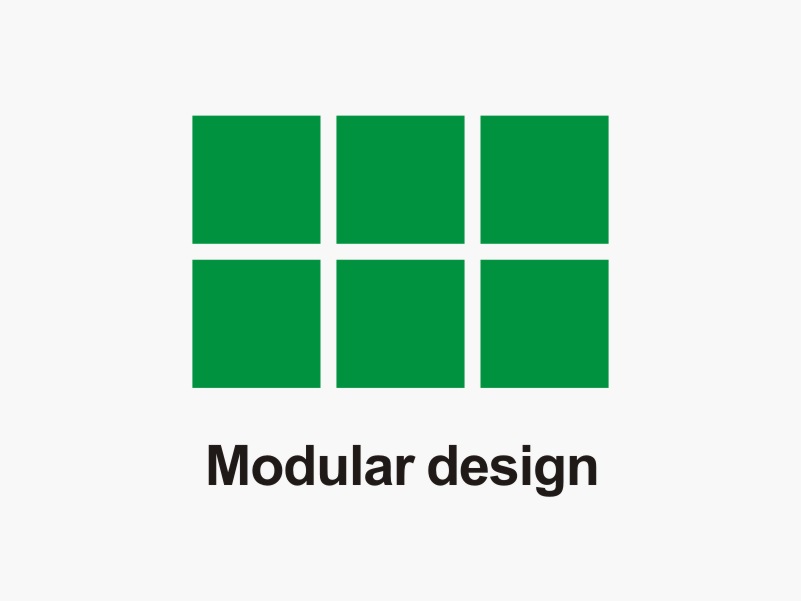

Modular design:
Flexible modular structure, you can freely splice screens of different sizes and shapes according to needs to meet a variety of display needs.

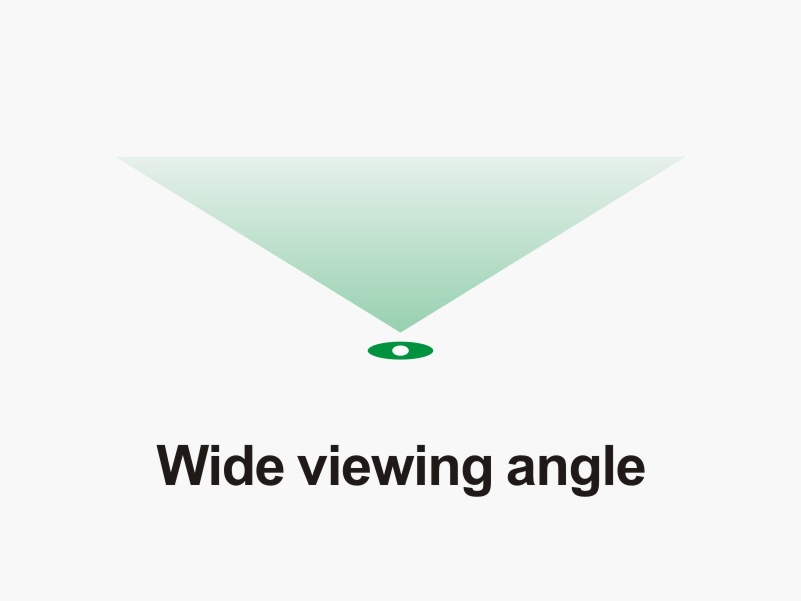

Wide viewing angle
High contrast and wide viewing angle design, no matter from which angle the image is viewed, it remains stable and clear, providing consistent visual effects.
Accessories
Power Cable
A 4-pin power cable is provided as standard to connect the module to the power supply.
Receiver card
Famous brand Novastar /Huidu, One receiver card can take 12 modules, 2 wide and 6 high.
P5 LED Module Specifications
| Product Model | P5mm-Outdoor-320-160 |
| Pixel Pitch | 5 mm |
| LED Configuration | SMD1921 |
| LED Density （dot/㎡） | 40,000 |
| Module Size | 320*160mm |
| Module Resoultuion | 64*32 |
| Module Brightness (Nits) | 4000-6000 |
| Driving Way | 1/16 Scan |
Image Gallery
P5 LED Module Details
Unify LED module factory
FAQs:
What is a P5 outdoor LED module?
A P5 module refers to an outdoor LED display module with a pixel pitch of 5mm, usually in a standard size of 320×160mm, with high brightness and protection performance
What is the brightness and protection level of a P5 outdoor module?
The brightness is generally over 5500nit, and it can be clearly displayed under direct sunlight, while also having IP65 waterproof and dustproof capabilities
How many 320×160 P5 modules are needed per square meter?
Each module is 320mm × 160mm in size, and approximately **19.5 (rounded to 20)** modules are needed for splicing per square meter.
What is the best viewing distance for the P5 module?
The recommended viewing distance is between 5 meters and 30 meters, which can ensure the integrity of the picture without graininess.
How to choose the power supply and control card of the module?
It is recommended to select a 5V power supply with stable output according to the power consumption and total current per square meter, and match it with Nova or Colorlight control system to ensure compatibility and display effect.
What applications are P2.5 LED modules suitable for?
P2.5 LED modules are suitable for indoor stages, large conferences, exhibitions, shopping mall advertisements, transportation hubs, control rooms and other places.
Is it compatible with control systems such as Novastar and Colorlight?
Yes, the P5 module is compatible with mainstream control systems such as Novastar, Colorlight, Linsn, Huidu, etc., and has good compatibility in terms of splicing and picture quality performance
Recommend Products
Top 15 Biggest LED Screens & Jumbotron Displays in the World
Updated 2026 Ranking: The 15 Biggest LED Screens & Jumbotrons on Earth. Plus, a deep dive into Common Cathode tech, GOB protection, and stadium display costs.
The Ultimate Giant LED Display Analysis: Price, Rental & Engineering
Explore the 2026 giant led display guide. Compare giant led screen cost, price, and rental ROI. From panels to advertising, get factory-direct insights from UnifyLED.
What is the Real Stage LED Screen Price in 2026? (Hidden Costs)
Our guide reveals the true stage LED screen price in 2026, covering turnkey costs, hidden fees, and rental ROI.
Maximize Ad Revenue: High-ROI LED Screen for Advertising Outdoor
Boost visibility with our LED Screen for Advertising Outdoor. High brightness, common cathode tech, and easy maintenance.

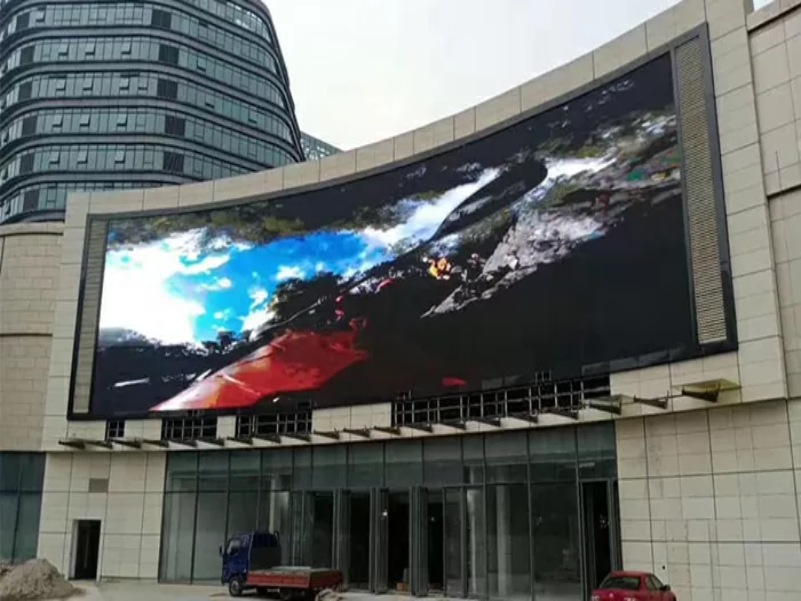

P5 outdoor LED module application
The 320×160mm outdoor P5 LED module is widely used in a variety of outdoor display occasions with its stable display performance and standardized module structure, especially suitable for medium-distance viewing needs of 5 meters to 30 meters. The following are several common and frequently used application scenarios:
Commercial door advertising screen:
Widely used in catering stores, retail chains, and convenience store doorheads. It is bright and clear during the day and automatically dims at night, helping merchants attract pedestrians’ attention and achieve the dual goals of publicity and diversion.

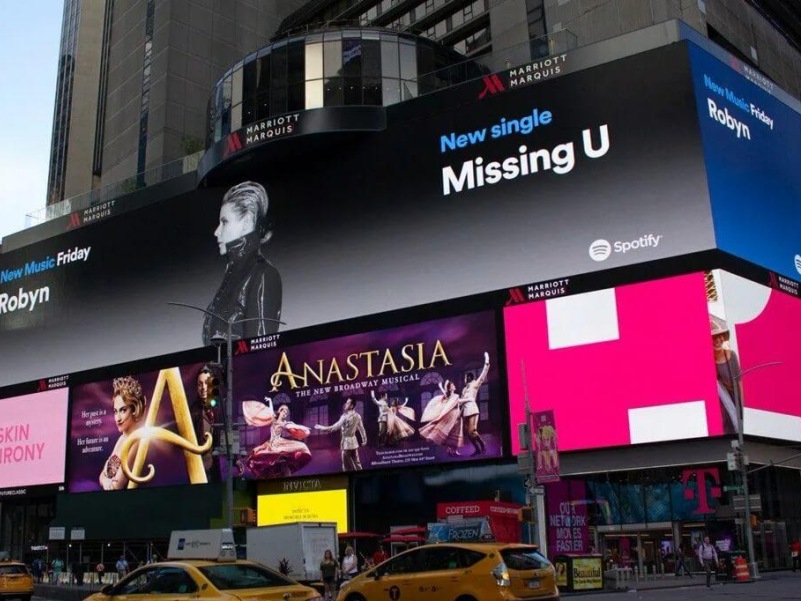

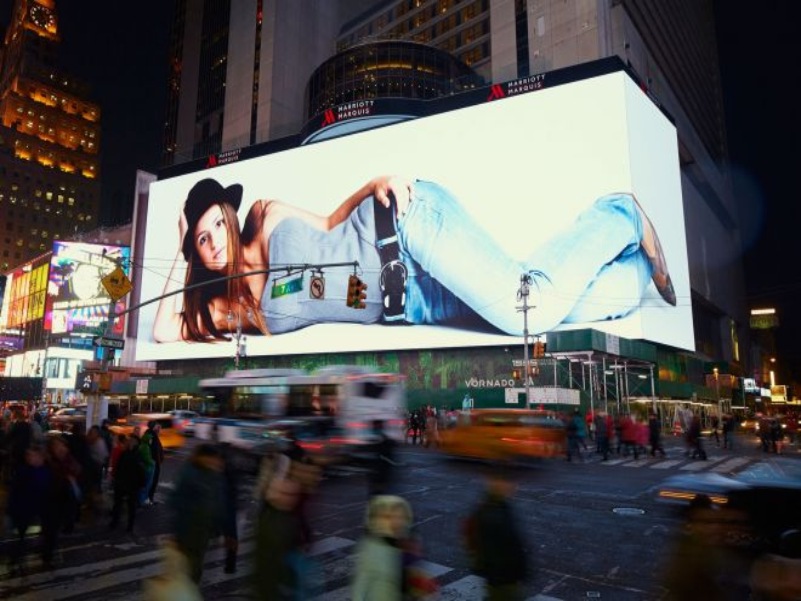

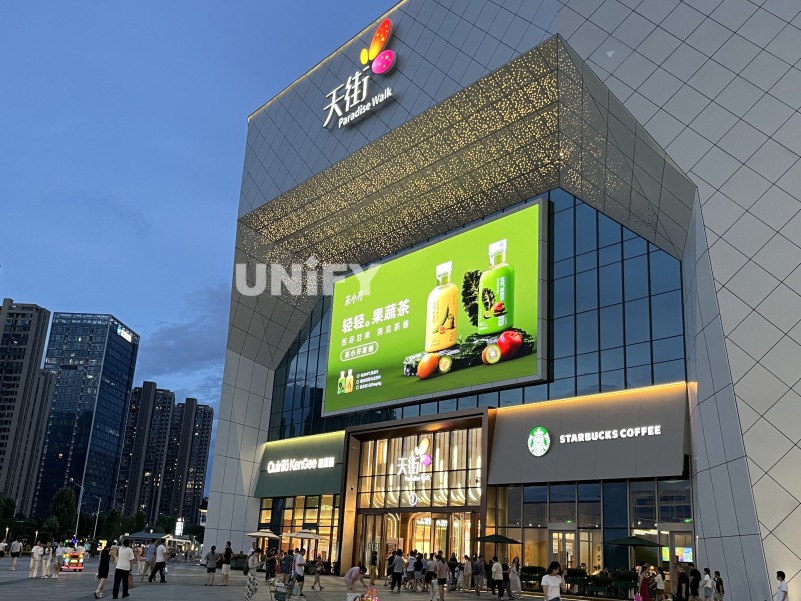

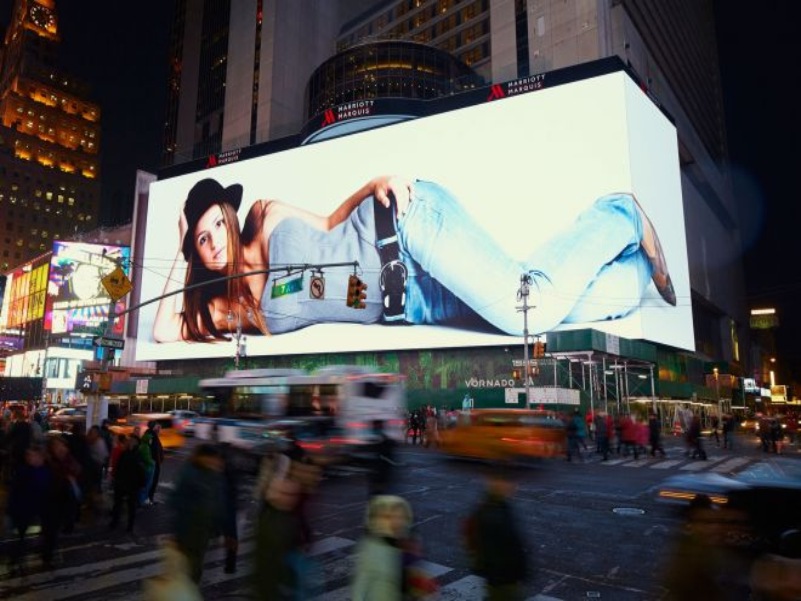

Outdoor advertising large screen:
Applicable to commercial plazas, intersections, walls beside roads and other locations, playing dynamic advertisements or brand promotional videos. The 320×160 standard size is convenient for splicing large-area advertising screens to meet the needs of 7×24 hours of uninterrupted playback.
Public information LED screen:
Various stations and airports provide arrival information, advertising content or weather reminders. The P5 module has sufficient brightness to ensure that it is still clearly visible in strong light environments, and modular maintenance facilitates quick replacement later.
Government publicity screen:
Publish announcement information, party building publicity or public service advertisements at street entrances, community entrances and exits, government agency exterior walls, etc. to improve the informatization and visual aesthetics of community management.
Temporary stage screen (semi-outdoor activities):
Suitable for festivals, temporary markets, rural temple fairs and other occasions, fast construction, easy control of content display, and support for mobile power generation and power supply solutions, flexible and reliable.

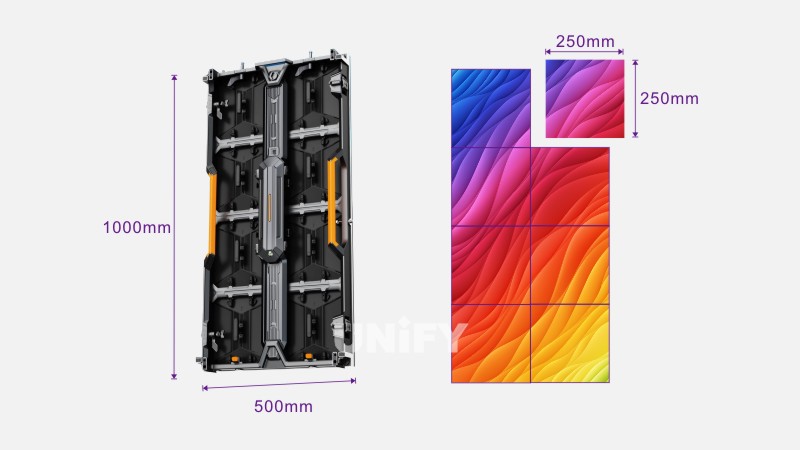

Single module vs. whole screen with cabinet: How to choose?
When purchasing P5 LED display products, users often face a choice: should they buy single modules or whole screen with cabinet?
These two methods have their own applicable scenarios and cost logic.
If you are a distributor or a customer with technical capabilities, it is more flexible to purchase single P5 LED modules, which are suitable for repair and replacement, assembly inventory, or self-equipped power supply and control system according to specific projects.
The cost is controllable, the inventory pressure is small, and the transportation packaging is more compact.
For engineering customers or terminal project installers, choosing a whole screen solution with cabinet is more worry-free and labor-saving.
LED module manufacturers have completed the integration and testing of modules, power supplies, control cards, cables and cabinets.
After receiving the goods, you only need to install them on the wall or build a structure, which saves design time, reduces docking errors, and improves delivery efficiency.
Get P5 LED Module Price
If you are looking for a reliable LED module supplier for your project, it is recommended to give priority to manufacturers with export experience and complete supporting capabilities.
As a direct supplier of LED modules from Chinese factories, UnifyLED LED screen supplier can provide you with a one-stop solution from modules, cabinets to control systems to help projects land efficiently.
If you need to obtain the latest P5 LED module price and customized suggestions, please feel free to contact the team for consultation.
