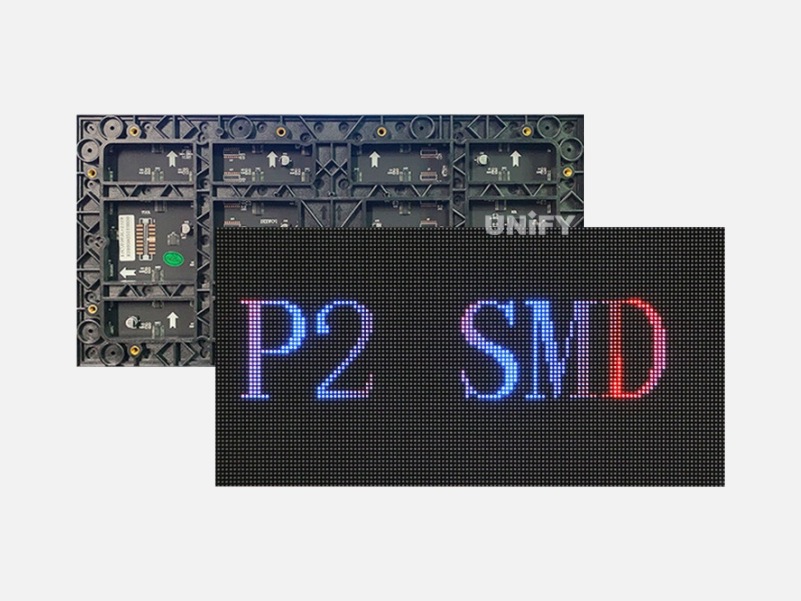

P2 Indoor LED Module
- Pixel Pitch: 2 mm
- Module Size: 320*160mm/256*128mm
- RGB Full color for indoor use
- Module Resolution: 160*80/ 128*64
- Lamp brand: Nationstar/Kinglight/Rayshine
- Refresh rate: 3840hz
- 2 Years Warranty
P2 LED module is an indoor LED module with a distance between two LED lamp beads (pixel pitch) of 2 mm. Due to the small pixel pitch, the module has high clarity and resolution, suitable for most indoor scenes, shopping malls, conference rooms, churches, restaurants, etc.
Modular design:
Flexible modular structure, you can freely splice screens of different sizes and shapes according to needs to meet a variety of display needs.
High Refresh Rate
Carefully selected LED drivers s allow P2.5 LED panel to deliver high refresh rates up to 3840Hz, resulting in flicker-free operation in module applications.
Wide viewing angle
High contrast and wide viewing angle design, no matter from which angle the image is viewed, it remains stable and clear, providing consistent visual effects.
High-definition
Provides high-resolution and delicate image display to ensure that the content is presented clearly and delicately, suitable for close-up viewing.

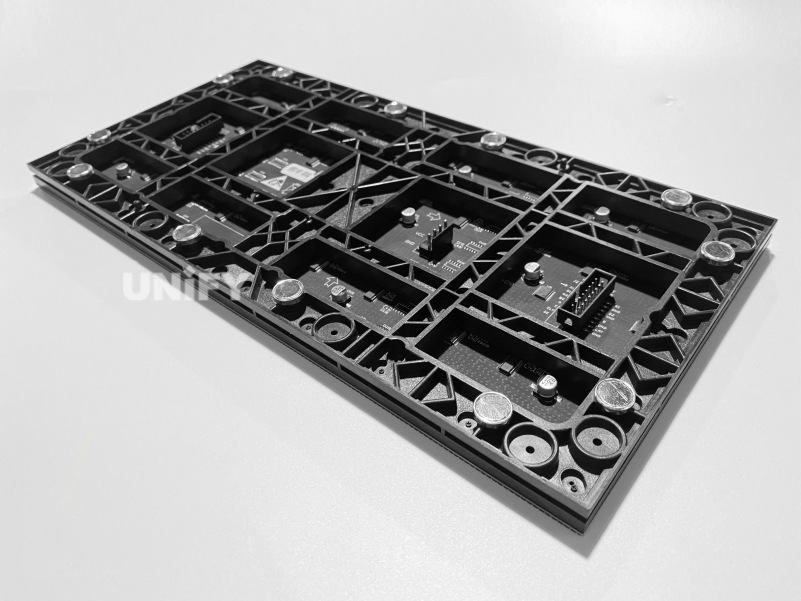

P2 LED Module Sizes
256*128mm LED module
The P2 LED module is 256mm wide and 128mm high, with a module resolution of 128*64dots.
320*160mm LED module
The P2 LED module is 320mm wide and 160mm high, with a module resolution of 160*80dots. It is suitable for 480*320, 640*480, 640*640mm indoor LED display cabinets.
If the module is used alone as a light-emitting screen, UnifyLED will provide you with a complete set of important accessories such as the corresponding power cable, signal cable, and receiving card.
If the module is used alone as a light-emitting screen, UnifyLED will provide you with a complete set of important accessories such as the corresponding power cable, signal cable, and receiving card.

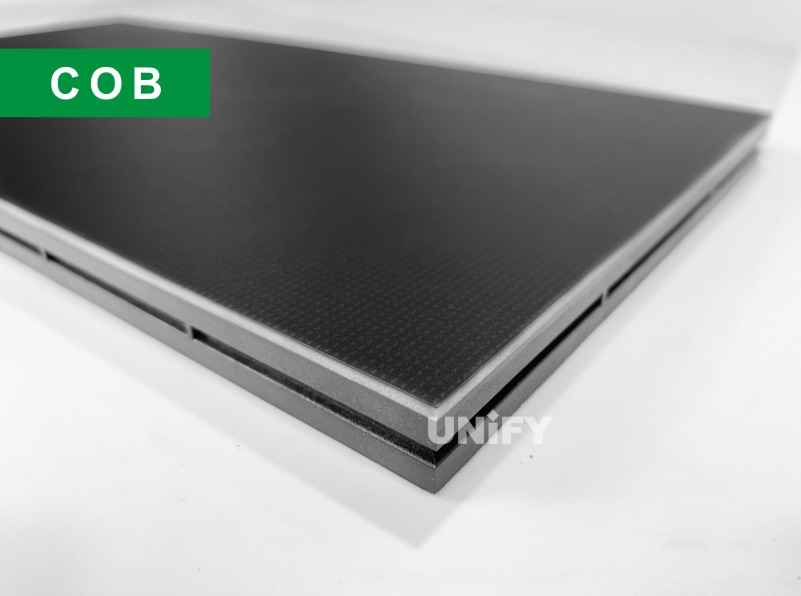

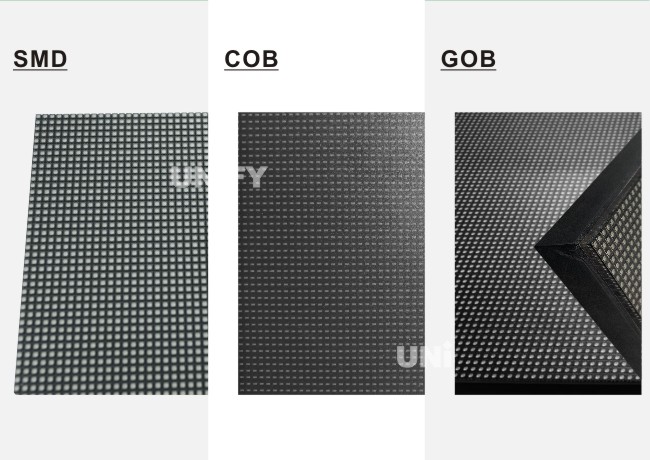

Support SMD/COB/HOB
Due to the small pixel pitch, the exposed lamp beads may collide and some SMD lamp beads may be damaged during transportation and installation. Therefore, COB and HOB options are provided, which have stronger protection and better color rendering.
P2 LED Module Accessories
Receiver card
Famous brand Novastar /Huidu, One receiver card can take 12 modules, 2 wide and 6 high.
Power Cable
A 4-pin power cable is provided as standard to connect the module to the power supply.
Data Flat Cable
Free of charge with sufficient number of industry standard 16-pin LED display signal cables
P2 LED Module Specifications
Model | P2-320 X 160 | ||||||
1.LED | |||||||
Color | Package | Intensity | View Angle | Wavelength | Test Cond. | ||
Red | SMD 2121 | 150mcd | 140/140 | 620nm | 25℃,20mA | ||
Green | SMD 2121 | 400mcd | 140/140 | 520nm | 25℃,20mA | ||
Blue | SMD 2121 | 100mcd | 140/140 | 470nm | 25℃,20mA | ||
Resolution | 160(H)×80(V) | ||||||
Pitch | 2mm | ||||||
LED Arrangement | SMD2121 | ||||||
Driver Mode | Dynamic 1/32 Duty constant current | ||||||
Size | 320mm×160mm | ||||||
Mask | Pure Black mask-high contrast screen | ||||||
Image Gallery

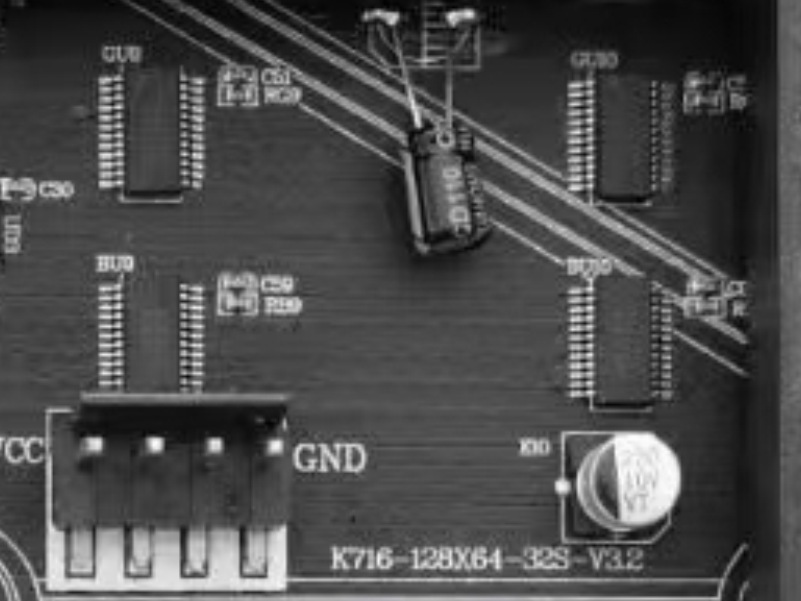

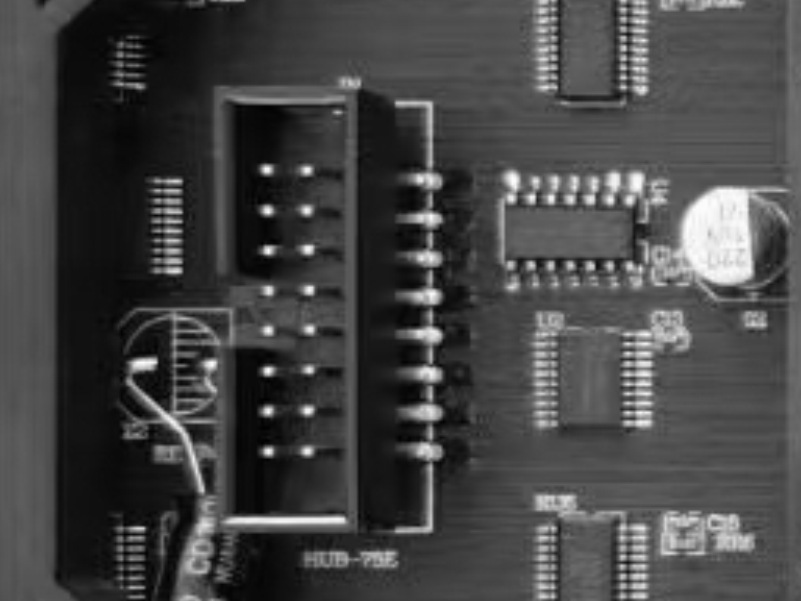

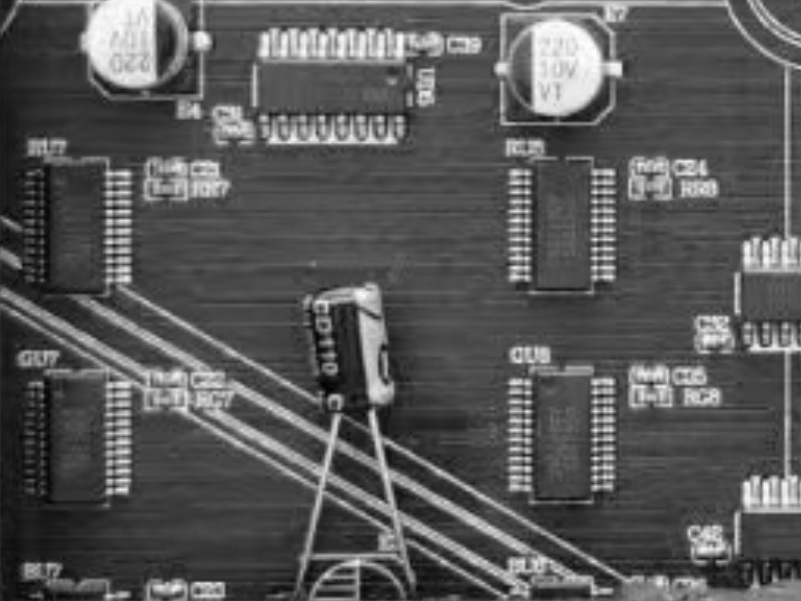

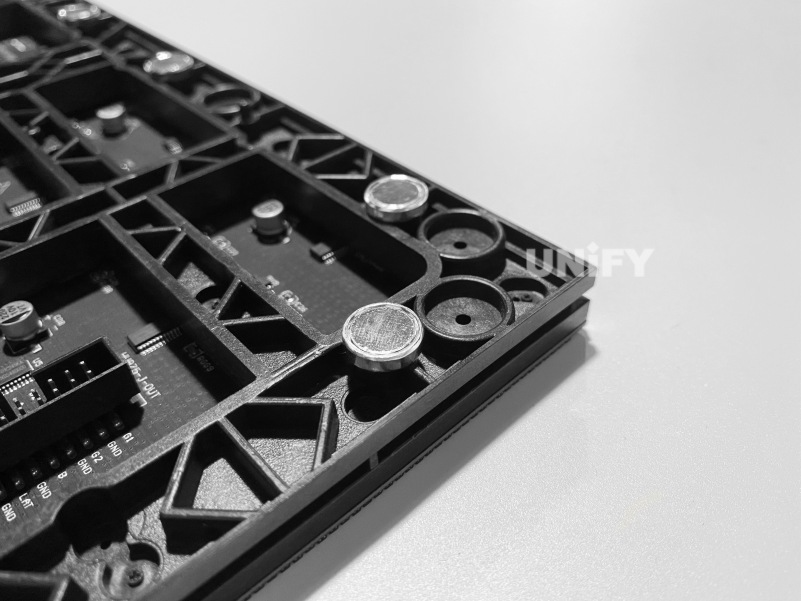

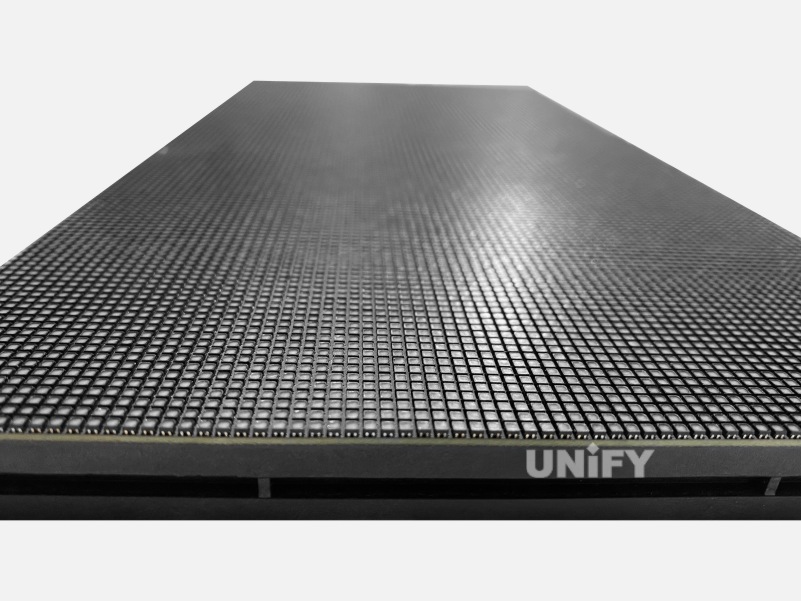

P2 LED Module Details
Recommend indooor LED Modules
Top 15 Biggest LED Screens & Jumbotron Displays in the World
Updated 2026 Ranking: The 15 Biggest LED Screens & Jumbotrons on Earth. Plus, a deep dive into Common Cathode tech, GOB protection, and stadium display costs.
The Ultimate Giant LED Display Analysis: Price, Rental & Engineering
Explore the 2026 giant led display guide. Compare giant led screen cost, price, and rental ROI. From panels to advertising, get factory-direct insights from UnifyLED.
What is the Real Stage LED Screen Price in 2026? (Hidden Costs)
Our guide reveals the true stage LED screen price in 2026, covering turnkey costs, hidden fees, and rental ROI.
Recommend indooor LED Screens
Mini LED vs QLED: Which Is Best for Commercial LED Displays?
Mini LED vs QLED comparison: UnifyLED commercial LED displays outperform QLED with seamless design, superior brightness, and modular maintenance.
Top 15 Biggest LED Screens & Jumbotron Displays in the World
Updated 2026 Ranking: The 15 Biggest LED Screens & Jumbotrons on Earth. Plus, a deep dive into Common Cathode tech, GOB protection, and stadium display costs.
The Ultimate Giant LED Display Analysis: Price, Rental & Engineering
Explore the 2026 giant led display guide. Compare giant led screen cost, price, and rental ROI. From panels to advertising, get factory-direct insights from UnifyLED.
What is the Real Stage LED Screen Price in 2026? (Hidden Costs)
Our guide reveals the true stage LED screen price in 2026, covering turnkey costs, hidden fees, and rental ROI.

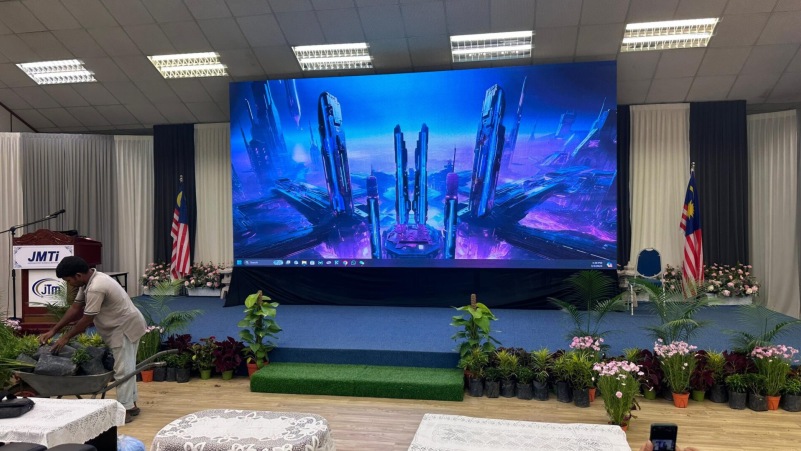

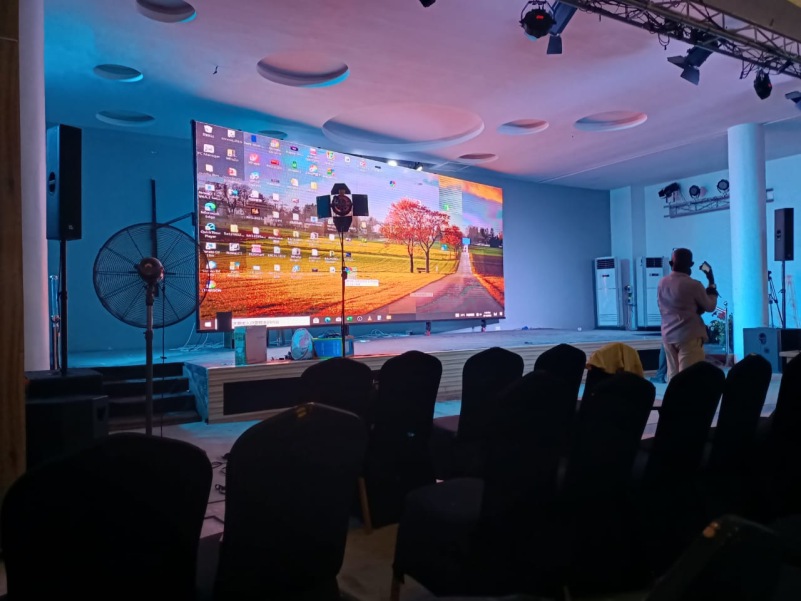

P2 LED Display module application
P2 LED modules are widely used in indoor fixed installations, especially in places where high-definition and clear images are required. Here are some common indoor application scenarios:
Conference rooms and multi-purpose halls:
P2 LED modules can be used as conference LED screens during meetings, trainings or large corporate events, and can clearly display PPT, videos and data analysis.
Because the resolution of this module is very high, people sitting far away can also see it clearly, so it is particularly suitable for large meetings or seminars.
Church
As a small-pitch LED module, P2 can be selected as one of the church LED screen solutions to clearly display church culture, pictures and videos at close range.
And as an indoor beautification decoration, it can well enhance the worship atmosphere of the church, and assist the pastor in reading the Bible or initiating interactive links such as voting.
P2 LED Display in Canada
4.8m*2.88m P2 LED Screen in USA
Retail and commercial display
P2 LED modules have become popular advertising screens in shopping malls, shopping centers and brand stores.
It can display very detailed pictures, helping customers see the details of the products and the advertising content, thereby grabbing their attention. This not only enhances the brand image, but also makes the customer’s shopping experience better.
Museums and exhibition halls:
In museums or exhibition halls, P2 LED modules can be used as information display screens for exhibits, displaying high-definition pictures, videos and interactive content, and attracting the audience’s attention through dynamic images.
This not only enhances the fun of the visit, but also makes the exhibition information transmission more intuitive.
Transportation hubs and public places:
In public places such as stations, airports, subways, etc., P2 LED screen modules can be used to display flights, train times, advertisements or some emergency information.
Help travelers quickly find the information they need. At the same time, they can also be used to play advertisements to increase the exposure of merchants, thereby creating a win-win situation for public places.
P2.5 LED Module Price
As a high-resolution and high-detail display LED module, the price of P2 LED module is affected by many factors. Here are some of the main price influencing factors:
Pixel pitch and resolution:
The pixel pitch of P2 LED module is 2 mm, which is a small pitch LED module that can provide high resolution and clear display effects. Small pitch means more LED lamp beads and finer display effects, so the production cost is higher.
Compared with large pixel pitch (such as P4, P5), the price of P2 module is generally higher, but its high display accuracy and clarity make it the first choice in high-demand occasions.
Production process and technical requirements:
The production process of P2 LED module is complex and the technical requirements are high. In order to ensure clear and stable display effects, P2 module needs to use high-quality LED chips and high-precision manufacturing process.
Therefore, its production cost is higher than other modules with larger pixel pitch.
And P2 module supports COB and GOB technology, which further affects the price of P2 LED module. , and then affects the final market price.
Add Your Tooltip Text Here
Supply and Order Quantity
The price of P2 LED modules is closely related to supply. Generally, customers who purchase in large quantities can enjoy lower unit prices, while small batch orders may face relatively higher prices.
Therefore, bulk purchases usually make prices more advantageous.
Market Price Range
P2 LED display modules are usually in the mid-to-high-end market range. Compared with other modules with larger pixel pitches, the price may be higher, but the high resolution and excellent display effect they provide make them very suitable for applications in high-end occasions.
The price range in the market usually ranges from US$300 to US$800 per square meter, depending on the supplier, price discounts for bulk purchases, and other relevant factors.
Purchasing Recommendations
When choosing P2 LED modules, it is recommended to choose LED module suppliers with high cost performance and perfect after-sales service to ensure product quality and long-term use guarantee.
Choosing suppliers with brand reputation and professional technical support can effectively reduce maintenance costs and unnecessary repair troubles caused by quality problems.
In addition, the aging test of the module should also be considered to ensure stable operation in actual applications, and the purchase quantity should be determined according to the actual demand to avoid the problem of high prices caused by small batch purchases.
P2 LED Module Aging Test
Definition and purpose: Aging test is to detect the stability, brightness, color temperature and other performance of LED modules to ensure long-term stable operation of the product.
All UnifyLED LED modules will undergo 48-72 hours of aging test after production. Assemble the module on the steel structure frame, light up the P2 LED module, and use red, blue, green and white to detect whether the color display of the LED lamp beads is intact.
Aging test can not only eliminate unqualified products, but also increase the service life of the module.
Qualified P2 LED modules can ensure high stability and high brightness during long-term use and reduce the occurrence of failures.
FAQs:
What is a P2 LED module?
A P2 LED module is an LED display module with a pixel pitch of 2 mm, suitable for high-resolution and high-definition display needs.
What is the resolution of a P2 LED module?
P2 LED modules usually provide high resolution, suitable for close-up viewing, and can provide a more delicate picture.
What is the service life of a P2 LED module?
High-quality P2 LED modules usually have a service life of more than 50,000 hours, suitable for long-term stable operation.
Are P2 LED modules suitable for outdoor use?
P2 LED modules are mainly used for indoor applications. Due to their low brightness and waterproof performance, they are not suitable for long-term exposure to outdoor environments.
What is the difference between a P2.5 LED module and a P2 LED module?
The pixel pitch of a P2 LED module is smaller, the display effect is clearer, and it is suitable for close-up viewing; the P2.5 is suitable for a slightly farther viewing distance and is more affordable.
How much does a P2 LED module cost?
The cost of P2 LED modules is higher than other modules with larger pixel pitches (such as P4 and P5), but the high-definition display effect they provide is very cost-effective in specific applications.
