P1.8 Indoor LED Module
- Pixel Pitch: 1.87mm
- Module Size: 320*160mm
- RGB Full color for indoor use
- Module Resolution: 171*85
- Lamp brand: Nationstar/Kinglight
- Control System: Novastar/Huidu
- Refresh rate: 3840hz
- 2 Years Warranty
P1.8 LED module is a small-pitch LED display module with a pixel pitch of 1.876mm, designed for close-range high-definition display needs. Compared with traditional modules such as P2.5 and P2.9, P1.8 has a higher pixel density and more delicate picture performance, and is widely used in high-end indoor scenes such as conference rooms, monitoring centers, exhibition halls, command and dispatch, and studios.
Main components
LED Lamp
LED lamp beads are the core display components, usually three-in-one full-color lamp beads (such as SMD1010)
LED Mask & Kit
Form a complete structure to protect the lamp beads from impact and facilitate installation and splicing
Driver IC
Controls the brightness uniformity, stability and grayscale level of the lamp beads (such as constant current driver chip)
PCB board
The basic circuit platform that carries LED lamp beads, driver ICs and other components, ensuring stable conductivity
SMD P1.8 LED module
Using SMD1515 or SMD1010 lamp beads, single lamp beads are packaged and arranged densely, the picture is delicate and the brightness is uniform. It is the most widely used small-pitch P1.8 solution on the market, suitable for standard indoor environments such as conferences, exhibition halls, and command centers.
COB P1.8 LED Module
Using COB (Chip on Board) flip-chip packaging technology, the lamp beads are directly packaged on the substrate, with stronger protection and impact resistance.
The surface hardness is high, dust-proof and moisture-resistant, especially suitable for crowded areas, frequent touch areas or places with extremely high stability requirements, such as rail transit dispatching, commercial high-end display, etc.
The surface hardness is high, dust-proof and moisture-resistant, especially suitable for crowded areas, frequent touch areas or places with extremely high stability requirements, such as rail transit dispatching, commercial high-end display, etc.
HOB P1.8 LED Module
Hybrid-on-Board is an improved SMD process. A transparent resin protective layer is covered on the outside of the traditional SMD lamp beads, which not only improves the surface hardness of the module, but also enhances moisture and dirt resistance while maintaining picture quality.
It is suitable for projects that have high requirements for brightness and want easy maintenance. It is a flexible solution between SMD and COB.
It is suitable for projects that have high requirements for brightness and want easy maintenance. It is a flexible solution between SMD and COB.
Key Features

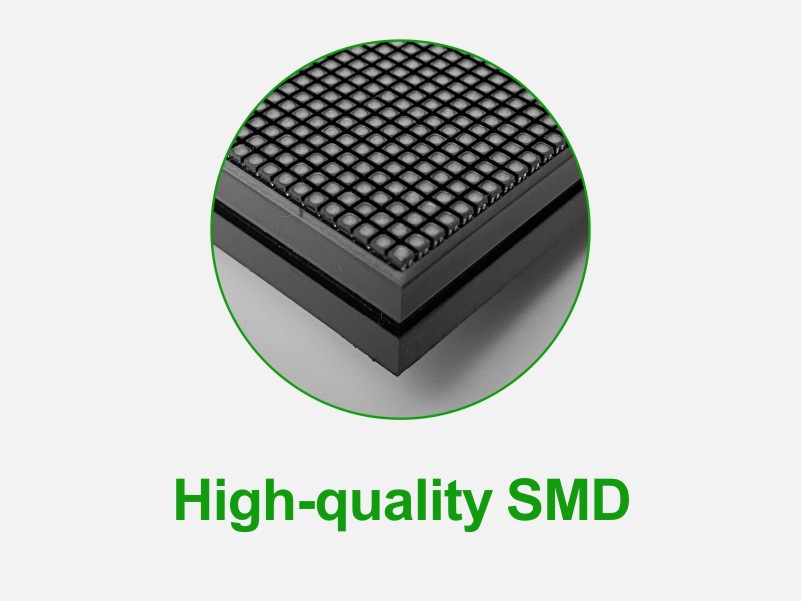

High-quality SMD
Using high quality SMD led lamp bead, no damge lamp, uniform current, same brightness, higher gray level
Wide viewing angle
High contrast and wide viewing angle design, no matter from which angle the image is viewed, it remains stable and clear, providing consistent visual effects.

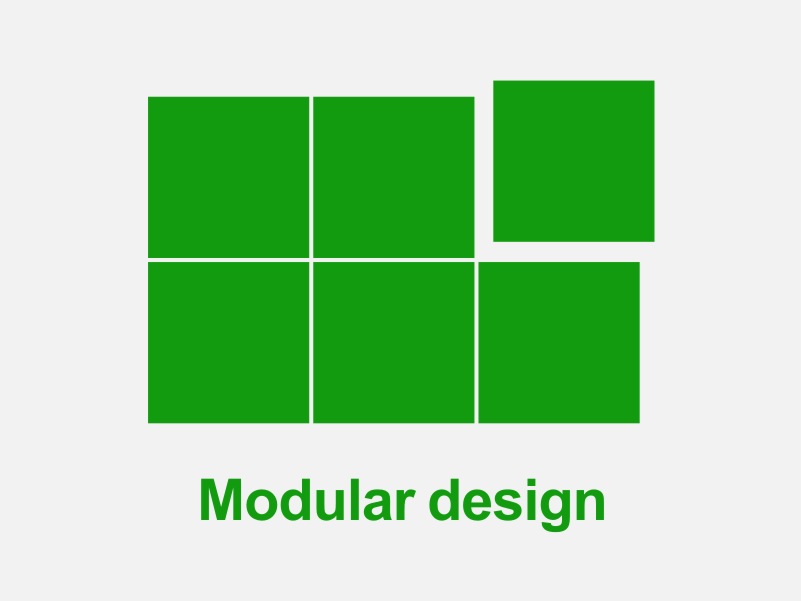

Modular design:
Flexible modular structure, you can freely splice screens of different sizes and shapes according to needs to meet a variety of display needs.
High Refresh Rate
Carefully selected LED drivers s allow P1.8 LED screen to deliver high refresh rates up to 3840Hz, resulting in flicker-free operation in module applications.
Accessories
Power Cable
A 4-pin power cable is provided as standard to connect the module to the power supply.
Receiver card
Famous brand Novastar /Huidu, One receiver card can take 12 modules, 2 wide and 6 high.
P1.8 LED Module Specifications
| Item | Specification |
|---|---|
| Pixel Pitch | 1.875 mm |
| LED Type | SMD1515 / SMD1010 |
| Module Resolution | 128 × 128 dots / 160 × 90 dots |
| Module Size | 240 × 240 mm / 320 × 160 mm |
| Module Pixel Density | 284,444 dots/m² |
| Driving IC | ICN2038S / MBI5153 |
| Driving Mode | 1/32 scan / 1/30 scan |
| Refresh Rate | ≥3840 Hz |
| Brightness | 600–800 cd/m² (adjustable) |
| Gray Scale | 14–16 bit |
| Viewing Angle | 160° (H) / 160° (V) |
| Module Weight | Approx. 0.4–0.6 kg |
| Maintenance Method | Front service / Magnetic installation |
| Control System Compatible | NovaStar / Colorlight / Linsn |
| Application | Indoor: conference, control room, showroom |
Image Gallery

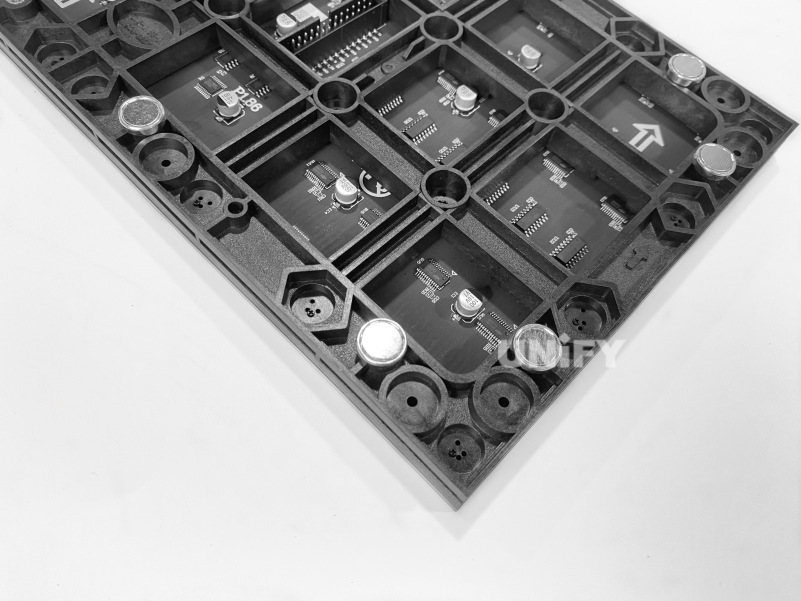

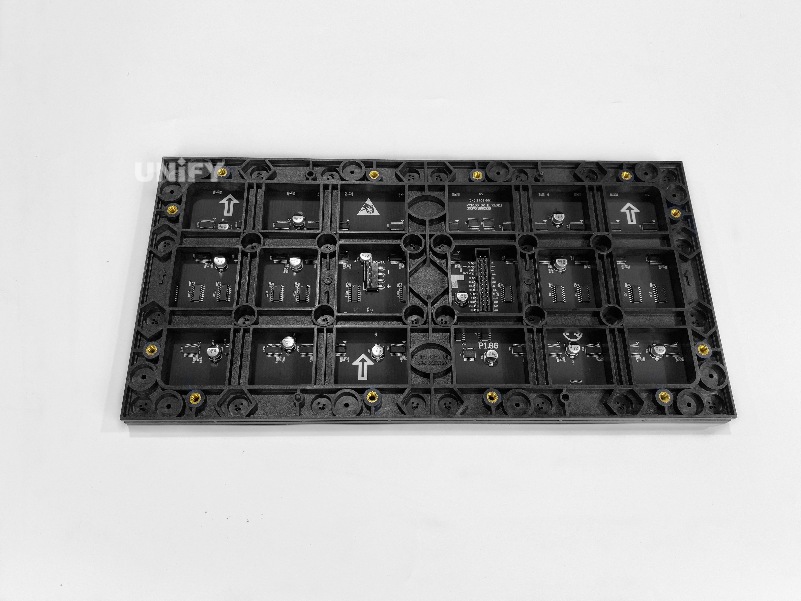

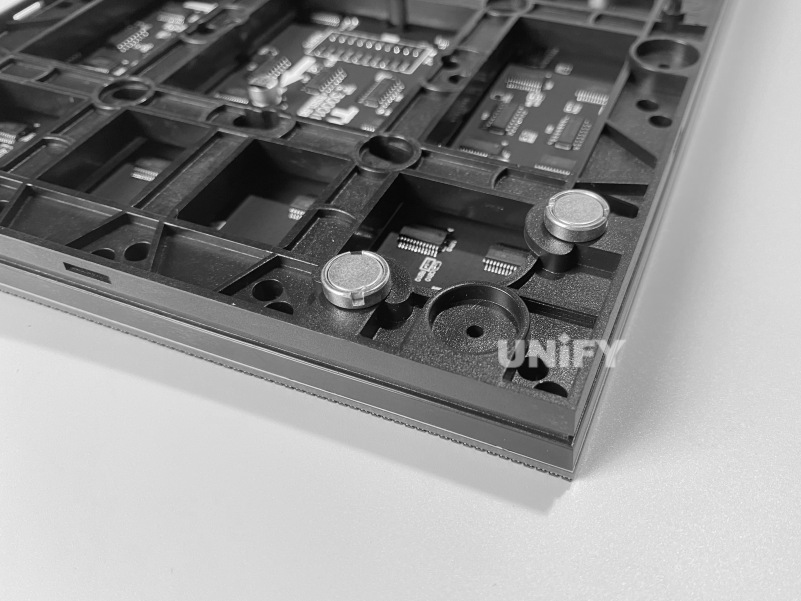

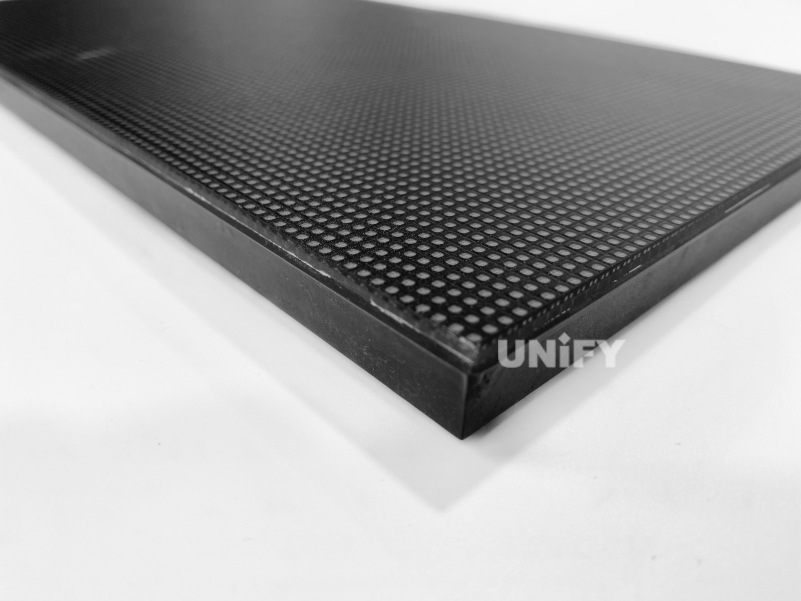

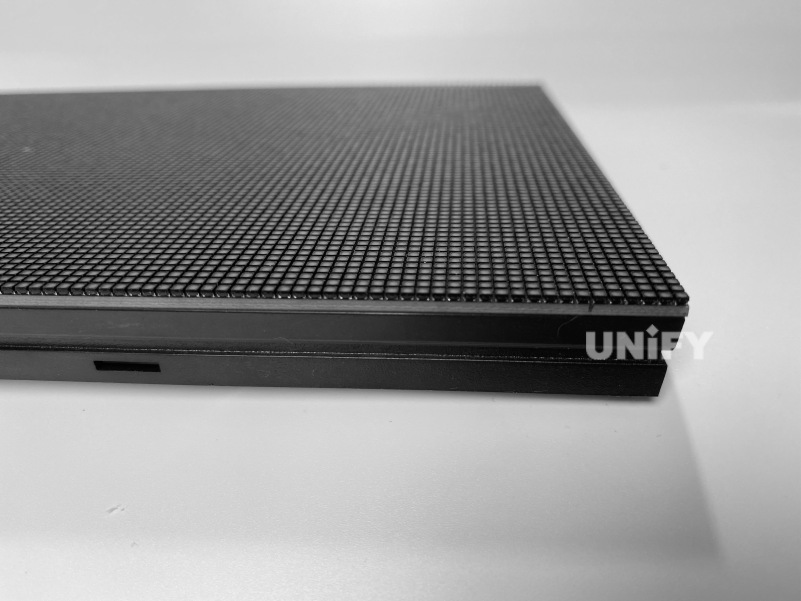

P1.8 LED Module Details
Unify LED module factory
Aging Test
All P1.8 LED display modules will undergo a 48-72 hour aging test after production. To detect whether the LED lamp beads have color cast and damage.
The aging test can detect the stability, brightness, color temperature and other performance of the LED module to ensure the long-term stable operation of the product and reduce the occurrence of failures.

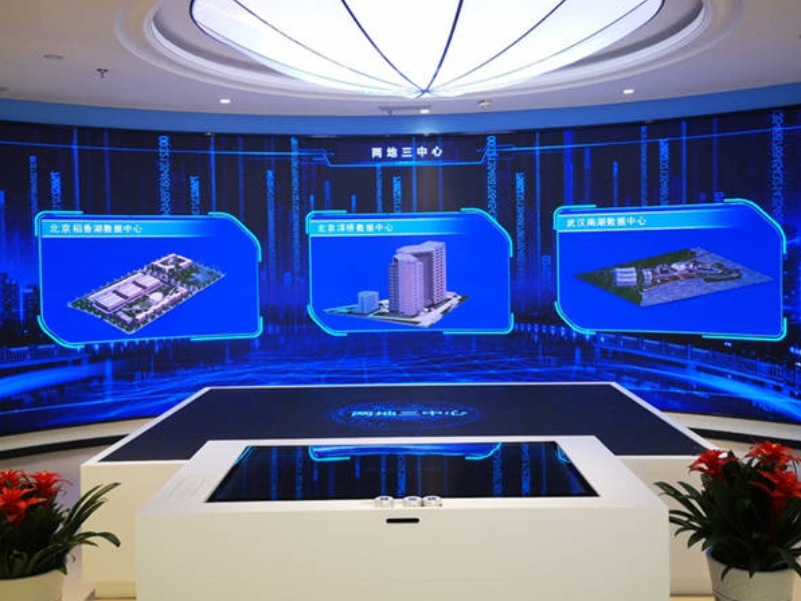

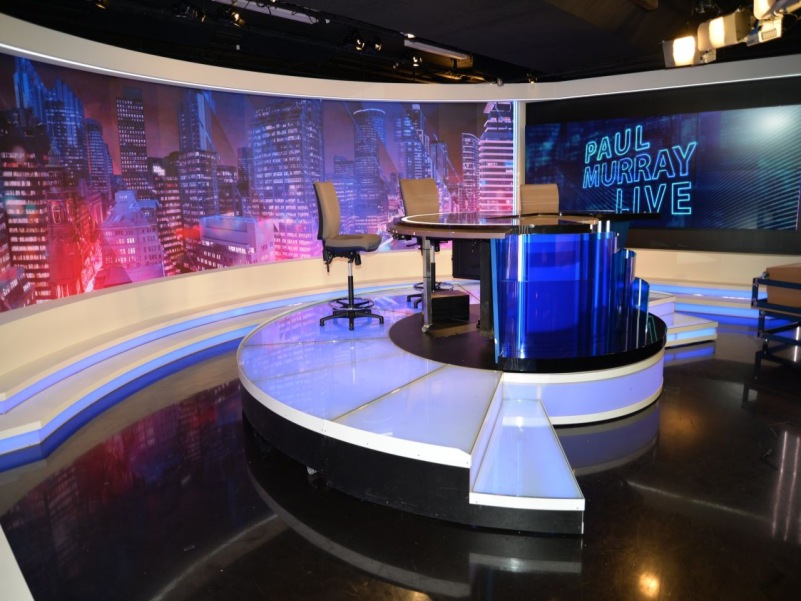

P1.8 LED Display Cases
As an indoor small-pitch LED display, P1.8 LED Screen is widely used in places with high requirements for close viewing and visual display, such as monitoring rooms, traffic control rooms, CCTV, large conference rooms, etc.
