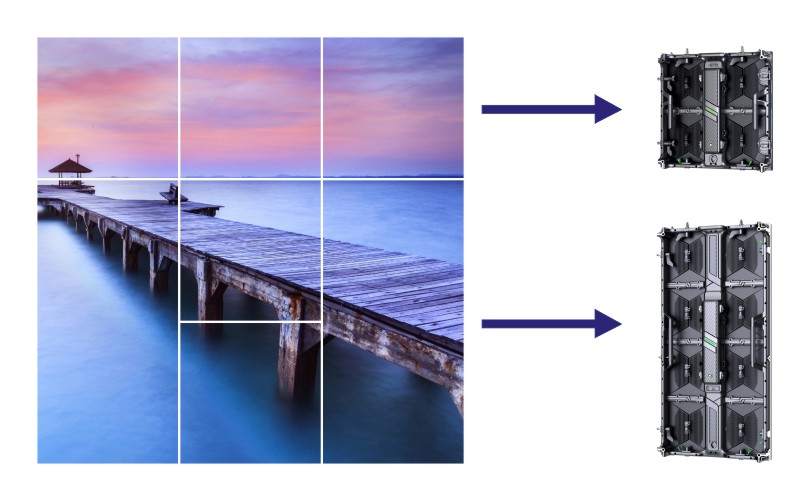

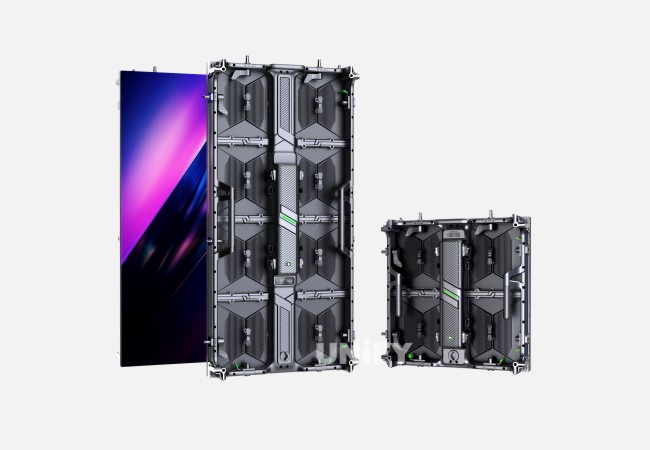

The LED screen size of Enova Series is available in 500*500mm and 500*1000mm. Choose the appropriate size according to the stage size and shape.
The two sizes can be used in combination to create a more unique shape while saving effort.

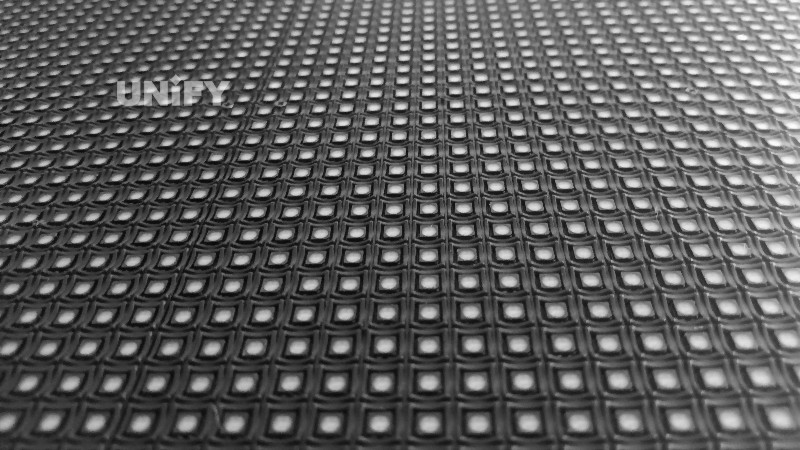

The Enova series of stage LED wall modules are 250*250mm in size and offer a variety of pixel pitch options, including P2.6, P2.9, P3.91 and P4.81.
These modules are highly compatible, allowing modules with different pixel pitches to be used interchangeably, greatly reducing the cost of upgrading and replacing the screen pixel pitch, as the cabinets can be shared.

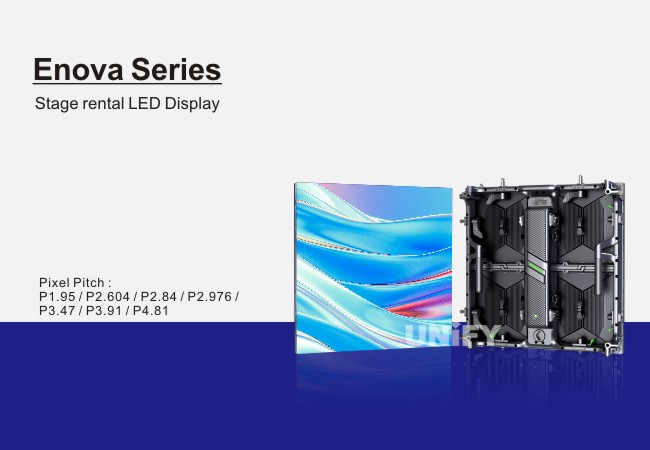

Enova Series: Rental LED display for stages with P1.95-P4.8. Die-cast aluminum, quick setup

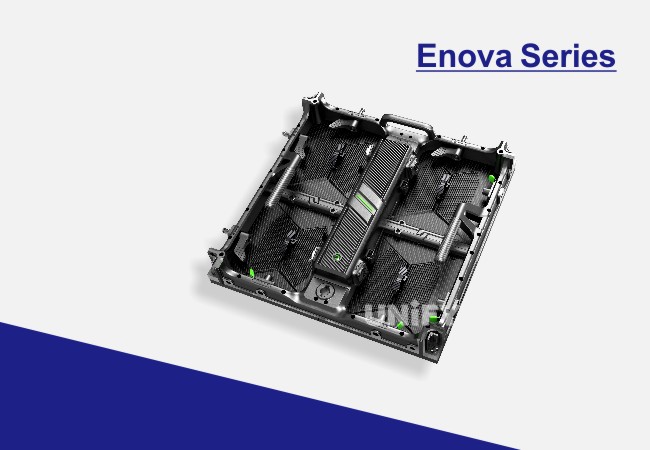

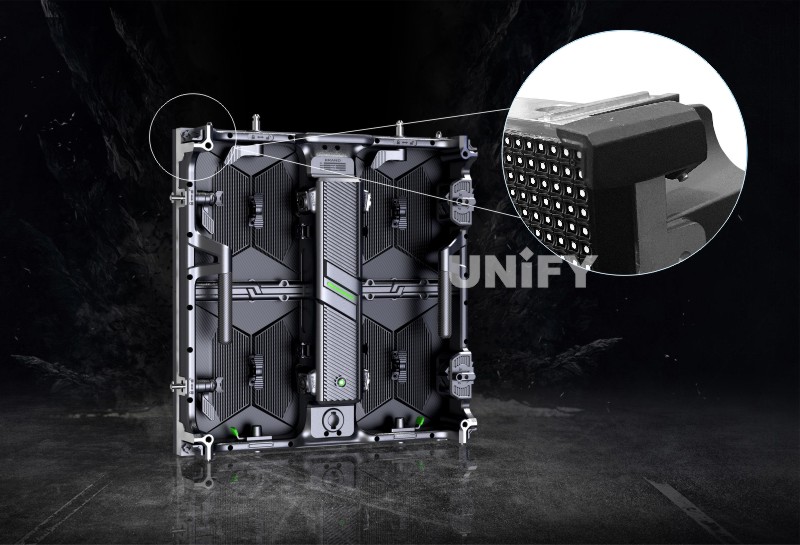

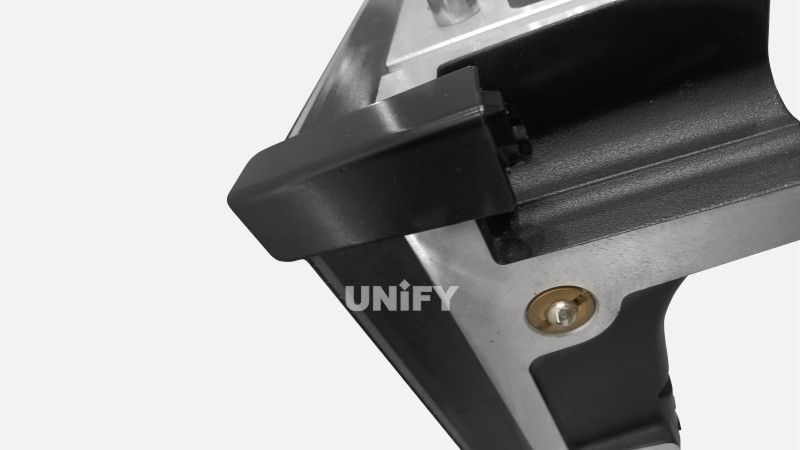

durable LED Enova: Die-cast aluminum + edge protectors shield pixels. IP65 outdoor/IP30 indoor

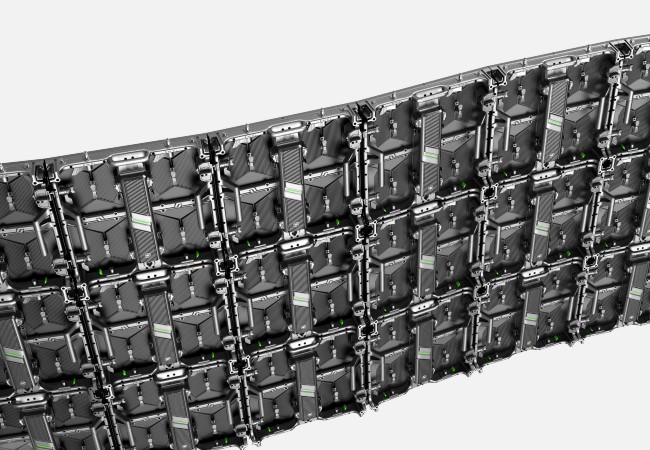

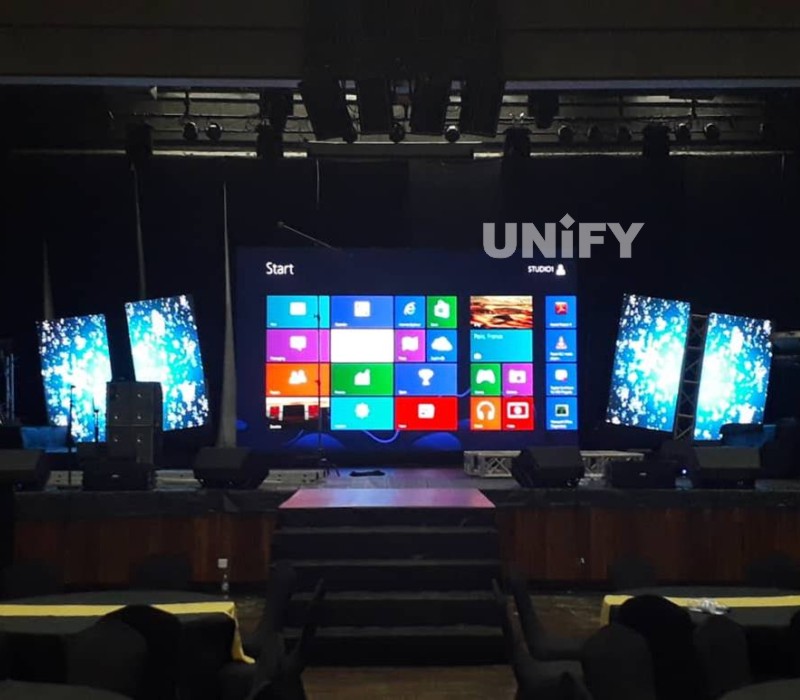

Stage rental Enova: Build flat/curved stages!Stand out with custom LED designs!

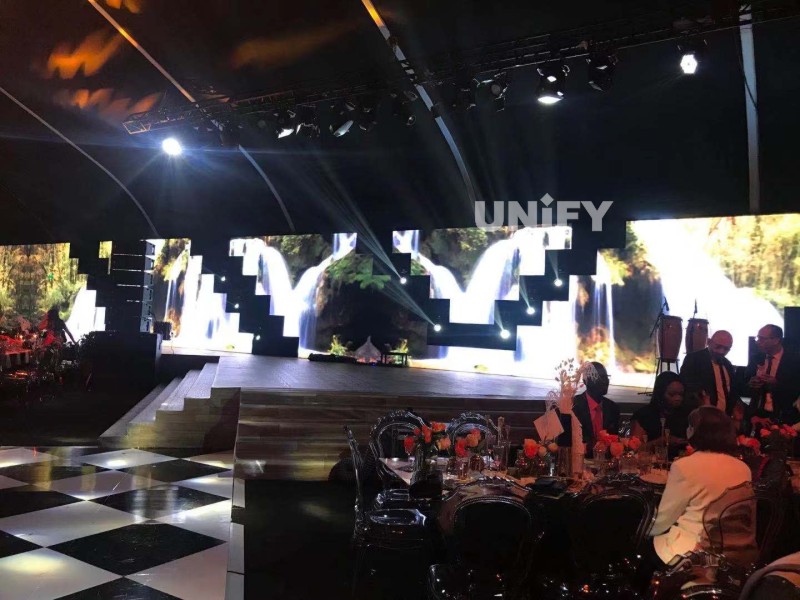

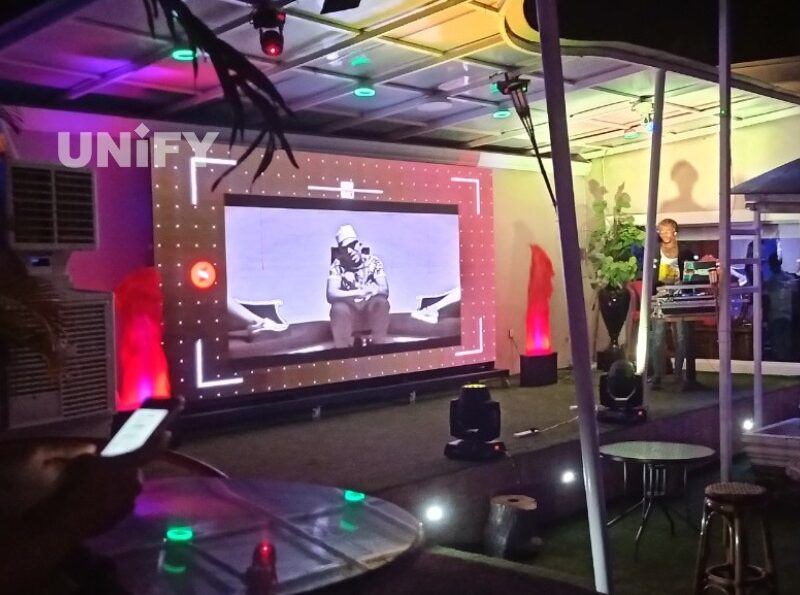

Unify LED® Enova:Perfect for concerts, events—any need, any scene!

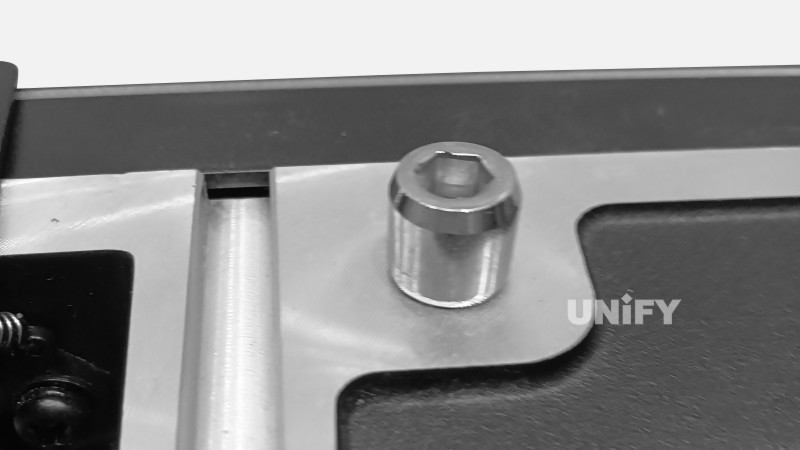

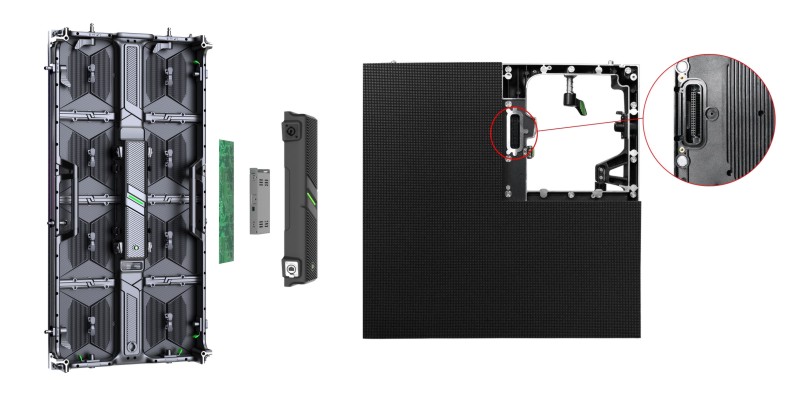

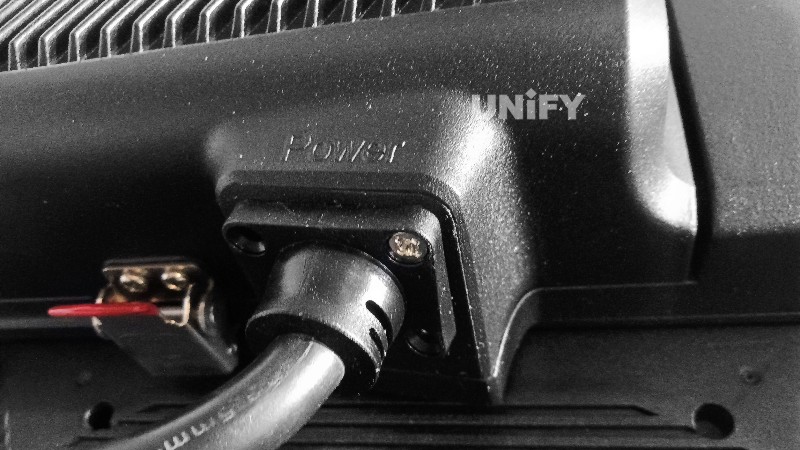

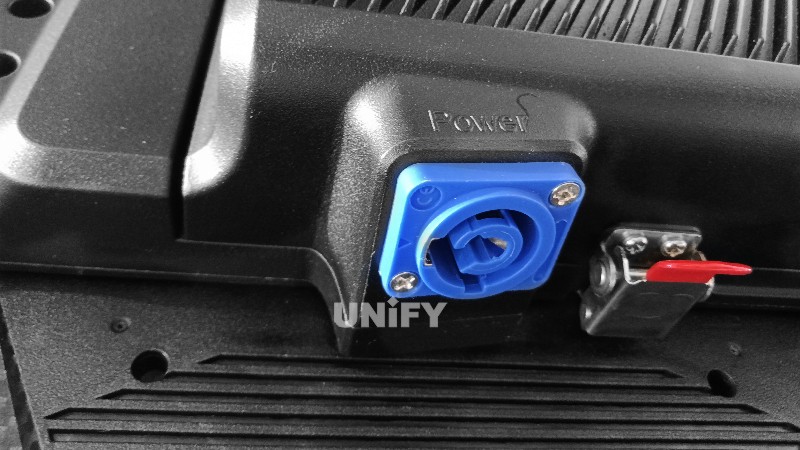

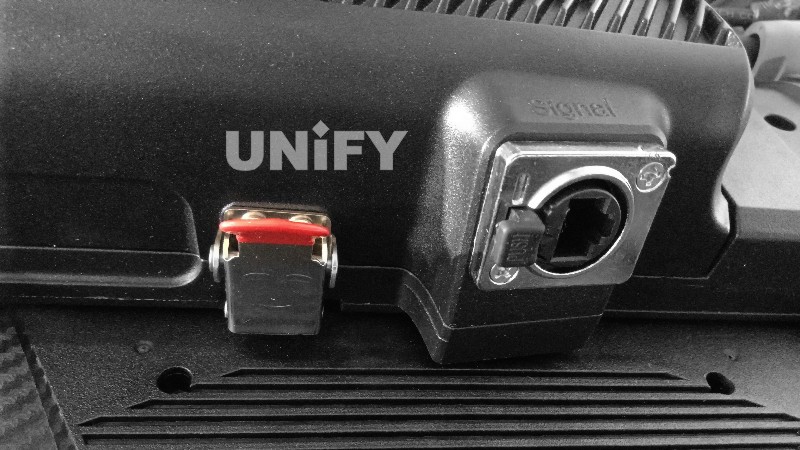

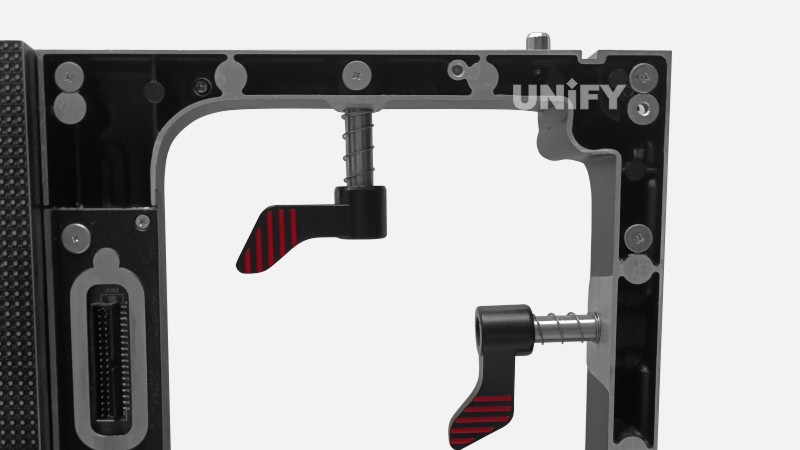

Unify LED Enova: 0.5s fast lock install! 500x500mm panels (7.6kg), no flat cables—direct connections
Unify Enova Pro: 1000cd indoor brightness, 281T colors.Rental for concerts/exhibitions.
| Value | Indoor | Outdoor | |||
| Pixel Pitch | 2.604 | 2.976 | 3.91 | 3.91 | 4.81 |
| Brightness | 1000 | 1000 | 1000 | 4500 | 4500 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD |
| Colors | 281trillion | 281trillion | 281trillion | 281trillion | 281trillion |
| Panel Pixel | 192*192 | 168*168 | 128*128 | 128*128 | 104*104 |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Pixel Matrix Per Sq.m | 147456 | 112896 | 65536 | 65536 | 43264 |
| View Angle (H/V) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| Power Comsuption(max/avg) | 550/200 | 480/170 | 400/150 | 600/200 | 580/180 |
| IP Rate | IP40/20 | IP40/20 | IP40/20 | IP65/43 | IP65/43 |
| Input Voltage (AC) | 110/240 | 110/240 | 110/240 | 110/240 | 110/240 |
| Panel Size(mm) | 500*1000*88 | 500*1000*88 | 500*1000*88 | 500*1000*88 | 500*1000*88 |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Weight(kgs) | 7.2 | 7.2 | 7.2 | 7.5 | 7.5 |
Compare IPS display vs LED displays to find the perfect screen for gaming, professional design, or retail. Explore 2026 updates on color accuracy, brightness, and energy efficiency to maximize your ROI.
Compare QLED vs Crystal UHD for commercial displays. Learn which technology fits your budget, limits of LCD, and when to upgrade to seamless LED Video Walls.
Learning how to repair P6 outdoor LED display sign board screens requires expert knowledge. Discover our step-by-step guide on module replacement, waterproof sealing, and color calibration.
Mini LED vs QLED comparison: UnifyLED commercial LED displays outperform QLED with seamless design, superior brightness, and modular maintenance.
In modern stage performances and event settings, visual presentation is no longer just a “background”, but has become a core element in shaping the on-site atmosphere and guiding the audience’s emotions. As the core equipment of this visual transformation, stage LED wall, or “stage LED screen”, is widely used in various concerts, press conferences, art festivals and corporate activities.
It completely subverts the traditional stage design’s reliance on lighting and props through its high-definition display, dynamic images and flexible splicing, making the stage setting from static to dynamic, from single to multiple.
Compared with traditional projection screens or printed background cloths, stage LED screen has higher brightness, wider viewing angle and better image expression.
Whether in a dim theater or a bright outdoor stage, it can accurately restore video content and visual effects to ensure that every audience can get an immersive experience.

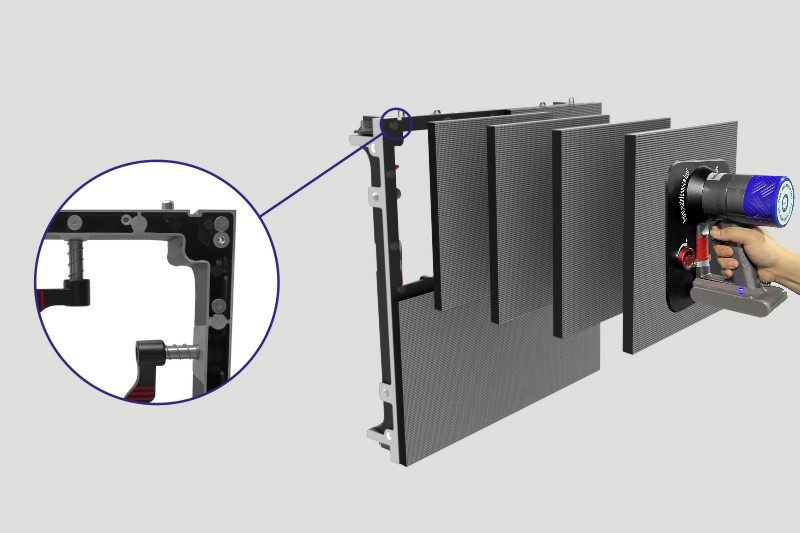

In addition, stage LED screens usually adopt a modular design, which is fast to install and flexible to combine, and can be customized according to the size of the stage and creative needs.
For this reason, stage LED display screens are gradually becoming a standard choice for creating shocking visual effects and improving stage expression.
Among the many stage LED large screen solutions, the Enova series rental LED wall has won wide favor in the stage performance, event site and rental industry for its excellent performance and flexible application.
This series of products is designed for frequent disassembly and multi-scene applications, perfectly meeting various professional needs from small indoor stages to large outdoor concerts.
Whether it is dynamic image display, special effect superposition, or real-time signal broadcasting, the Enova series can create a very impactful stage visual effect with stable, bright, and high-definition picture performance.
One of the highlights of the Enova series is that it has done a very good balance between portability and structural stability.
Each LED screen box is only 7.5 kg, made of high-strength die-cast aluminum, which is both light and strong, and the installation speed is fast, and the splicing is also seamless, so that the time for stage layout can be saved a lot.
This makes it particularly suitable for stage equipment rental companies, high-frequency usage scenarios and mobile performance teams.
In terms of visual performance, the Enova series stage LED screen supports HDR high dynamic display, high refresh rate and high contrast, restoring real and vivid color levels, and injecting unlimited creativity into the performance.
In addition, the Enova series has many pixel pitches, such as P2.6, P2.97, P3.91, etc., which can meet different viewing distances and clarity requirements. Moreover, it also supports a variety of control systems, which is really good in terms of compatibility and scalability.
For this reason, the Enova series rental LED wall is not only the “hardware foundation” of stage scenery, but also the key force leading the upgrade of on-site performance.
In the current competitive stage design and LED display rental market, the Enova series of stage LED walls is really great, especially in terms of performance and innovative technology.
Take ordinary LED stage screens for example, the Enova series is much stronger in structure, visual effects, installation speed, and even long-term reliability.
Here’s a direct comparison between the Enova series and typical LED stage screens:
| Feature / Spec | Enova Series Stage LED Wall | Standard LED Stage Screen |
|---|---|---|
| Cabinet Weight | Ultra-light, approx. 7.5kg | Heavier, typically 10–12kg |
| Installation Structure | Fast-lock system, tool-free assembly | Basic screw/clip system, time-consuming |
| Display Performance | High refresh rate (≥3840Hz), HDR support | Lower refresh (<1920Hz), image flicker |
| Splicing Flexibility | Supports curved (inner/outer), 90°, stacking | Limited to flat configurations |
| Pixel Pitch Options | P2.6, P2.97, P3.91 available | Fewer models, less flexibility |
| Maintenance | Front and rear access supported | Mostly rear access, space-consuming |
| System Compatibility | Works with NovaStar, Colorlight, etc. | Compatibility varies, less expandable |
| Recommended Scenarios | Touring, rentals, outdoor events, concerts | Small events, fixed installations |
| Build Precision | CNC aluminum frame, ultra-precise seams | Welded frame, less accuracy |
| Stability & Lifespan | High-quality LEDs and drivers, stable | Varies by batch, prone to aging |
From the above picture, the Enova series LED display has found a good balance in terms of portability, visual effects and versatility. Some of its advanced features, such as high refresh rate, HDR display, and support for curved or stacked layouts, make it an ideal choice for stage applications that require vitality and impact.
The screen has dual maintenance channels and a modular structure, ensuring efficient and reliable installation, operation and maintenance under tight production time.
For event professionals who need efficiency and do not want to compromise on quality, the Enova series of rental LED screens is a reliable choice, whether you are doing a tour, brand event or corporate live broadcast.
As the requirements for visual effects and system stability at performance sites continue to increase, how to scientifically select a high-quality stage LED wall has become a core element that stage planners and rental companies must master.
The following are several key parameters that should be focused on when purchasing or renting high-definition LED display screens:
The dot pitch refers to the center distance between LED pixels. The smaller the value, the higher the screen resolution and the more delicate the display effect.
P2.6 and P2.97: Suitable for indoor stages or TV studios for close viewing, supporting high-definition live broadcasts and high-dynamic content presentation;
P3.91: Taking into account clarity and cost-effectiveness, it is widely used in medium and large stages, commercial activities, outdoor stages and other scenes;
Reasonable selection of dot pitch can not only ensure image clarity, but also avoid budget waste, which is a key link in the selection of technical parameters for rental LED screens.
High grayscale levels of 16bit and above can bring smoother color transitions and more realistic images.
In a stage environment with frequently changing lights, high-quality high-definition LED displays can maintain stable brightness and natural tones, effectively avoiding color blocks or jumps, thereby enhancing the atmosphere of the entire stage.
An excellent stage LED wall should be compatible with mainstream control systems (such as NovaStar, Colorlight), support multi-signal input and synchronous processing.
At the same time, the modular structure and front and rear maintenance design not only improve the stability of equipment operation, but also significantly reduce the maintenance cost in long-term use, especially suitable for LED rental scenarios and high-intensity touring projects.
A comprehensive evaluation of the above parameters can help stage designers and equipment purchasers select a stage LED wall that truly meets the needs of the project and create a more professional and shocking performance picture.
As a professional stage LED display, the price of Enova series usually consists of the following parts:
LED module and cabinet unit price: depending on the pixel pitch model (such as P2.6 / P2.97 / P3.91), the unit price fluctuates;
Control system and accessories: including sending card, receiving card, power supply, video processor, etc.;
Structural parts and mounting brackets: components required for hoisting/stacking/arc splicing;
Transportation and after-sales service: depending on the project location and delivery method;
Overall customization plan (optional): including system integration, image processing, customized curved surface structure and other services.
– P2.6 has high precision and is suitable for close viewing, and the price is slightly higher;
– P2.97 has a balanced price-performance ratio and is the main model commonly used for performances;
– P3.91 has a large viewing distance tolerance, suitable for outdoor or medium and long-distance scenes, and the unit price is relatively affordable.
The larger the project area, the higher the total price; but bulk purchases can get better discounts;
The higher the resolution, the higher the control system requirements, and the corresponding cost increases.
Supports mainstream systems such as NovaStar and Colorlight, and customers can choose a more cost-effective or more powerful version;
Some customers choose HDR display and synchronous redundant control, which is slightly more expensive.
With the continuous development of technology, the function of stage LED wall is far more than “display”. It is gradually integrating XR virtual technology, interactive systems and intelligent remote control, evolving towards immersion, interactivity and system integration, bringing new changes to stage performances and visual creation.
With the popularity of XR (extended reality) technology in movies and performances, immersive LED walls have become the core medium in virtual shooting environments.
Through high refresh, synchronization system and virtual camera tracking, LED stage background can be perfectly integrated with real scenery, and is widely used in virtual concerts, immersive dramas and XR music festivals.
In the future, stage LED systems will adopt more interactive sensing technologies, such as infrared sensing, gesture recognition, real-time audience feedback interaction, etc., so that the stage is no longer a one-way communication, but an emotional bridge between the audience and the performers.
Interactive LED large screens have gradually landed in corporate activities, concerts and brand releases, forming a dual experience mode of “immersion + participation”.
With the support of the Internet of Things and 5G technology, the intelligent stage LED system has begun to have the capabilities of remote status monitoring, content linkage control, and partition synchronization scheduling.
Equipment operation and maintenance personnel can remotely control the LED wall through the background system to achieve brightness adjustment, content switching, fault warning and other operations, effectively improving management efficiency and reducing operation and maintenance costs.
In the future, stage LED wall will not only be a “stage background”, but also a core device of digital stage that integrates immersive display, real-time interaction and intelligent control, leading a new generation of visual performing arts.
Unify LED is a trusted Chinese LED display factory.
Enova is designed for the LED rental market, taking into account performance and portability;
Global customers are widely used in high-standard scenes such as tours, corporate annual meetings, TV shows, fashion shows, etc.;
Provide fast delivery + remote technical support to reduce project execution risks;
Support customized contract procurement/long-term rental/on-site service, and flexibly adapt to various stage projects.
If you have specific project needs, please contact us to get a one-to-one solution quote, we will provide:
CAD design drawings and point analysis;
Comparison of solutions under different sizes and budgets;
Free sample screen experience and case sharing;
Complete Enova series stage LED wall product manual and technical parameter table.
