Outdoor LED Display Module
Outdoor LED display modules are an important part of outdoor LED display . It has various sizes and spacings to meet different outdoor needs, such as column advertising, commercial promotion, etc. Some types of modules can be assembled into a large screen independently or used with a cabinet structure, depending on your budget and application scenario.

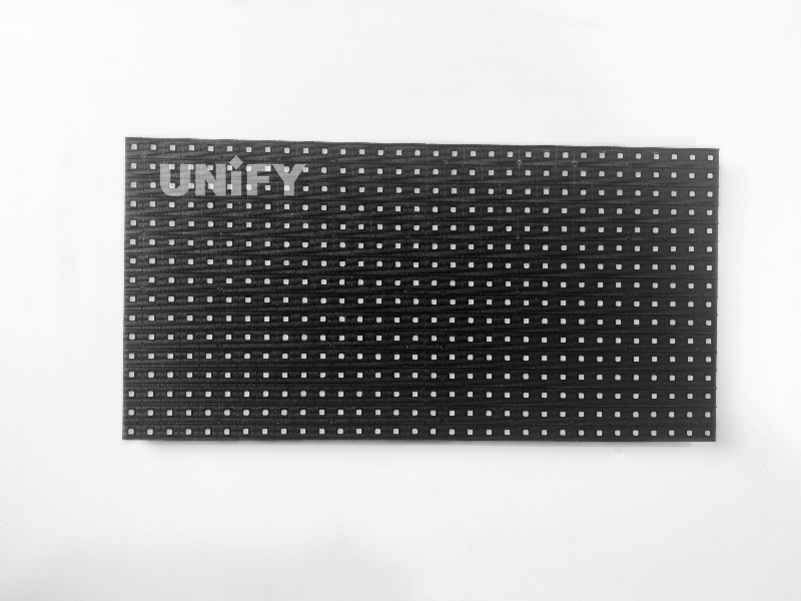

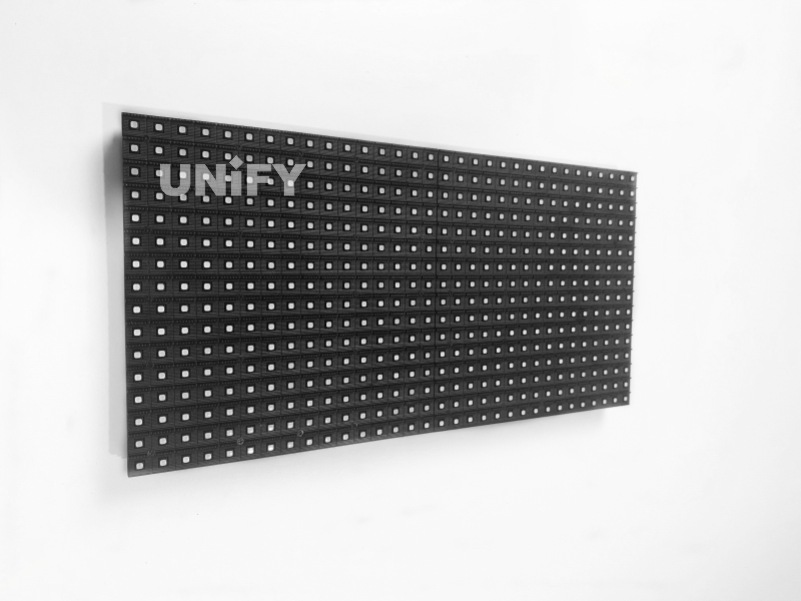

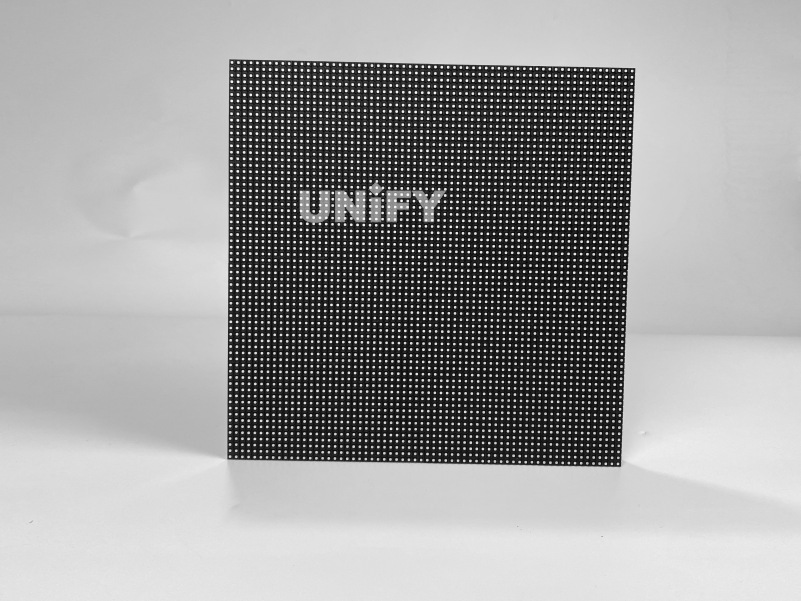

Outdoor LED Module

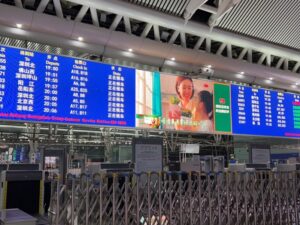

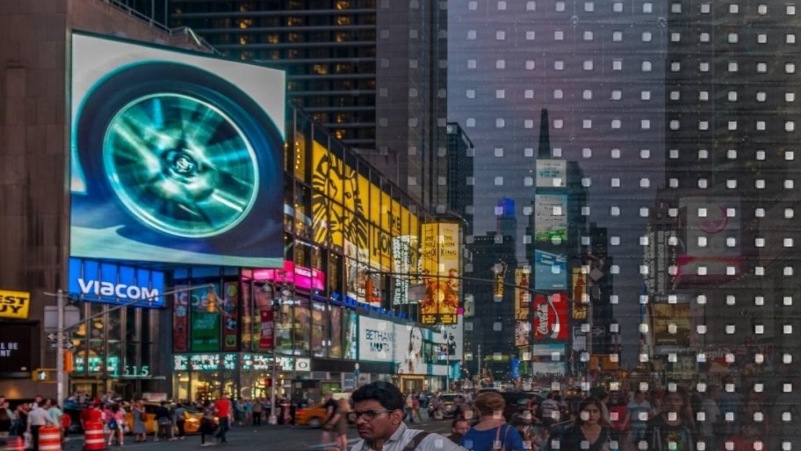

Outdoor LED modules are the protagonists of today’s display technology, commonly seen in advertising, transportation and public places. They have high definition, high contrast and high brightness, and can provide clear views even on sunny days. Each module is composed of LED lamp beads, chips and a sturdy shell.
A single LED module can display images, and countless modules can be assembled into a super-large seamless LED display. Modularity not only makes installation and maintenance simple, but also can be flexibly matched to meet various needs, bringing efficient and economical digital display solutions to advertisers and urban planners.

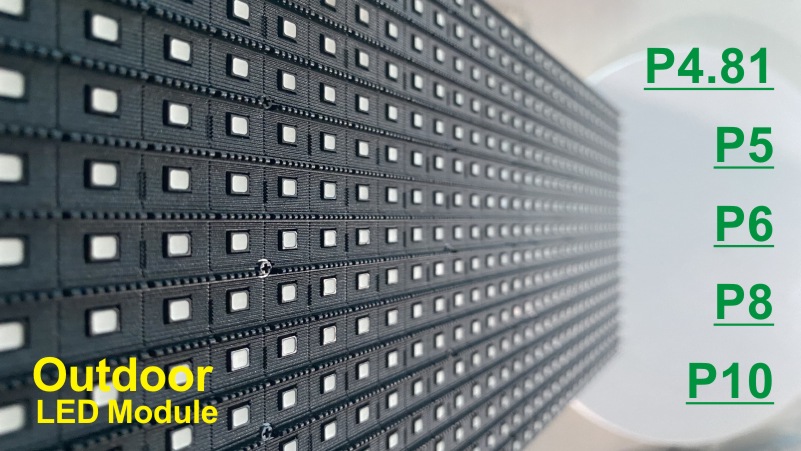

- Pixel pitch P4.8, P5, P6, P8, P10 etc.
- High refresh rate with 3840Hz to allow flicker-free
- Compatible with mainstream control systems Novastar, Linsn, Colorlight, Huidu, etc
Outdoor LED Module Size
LED Lamp Beads

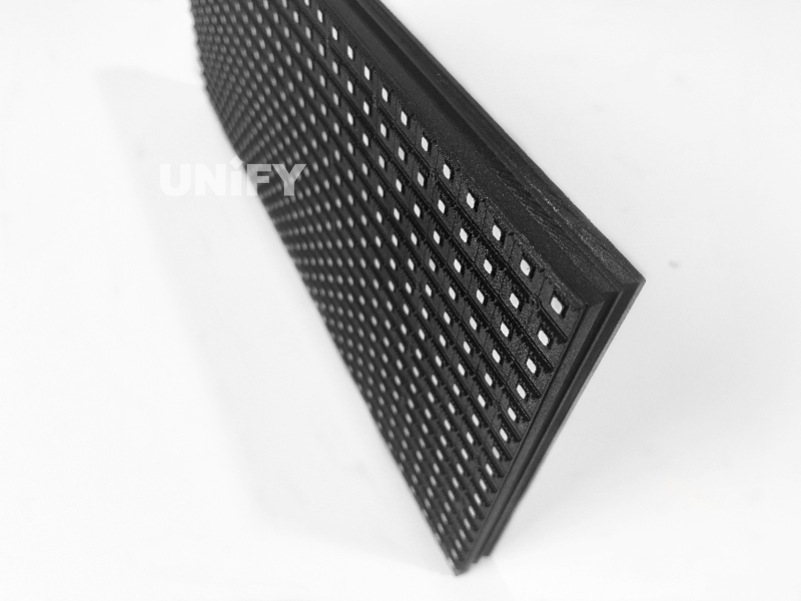

LED Mask

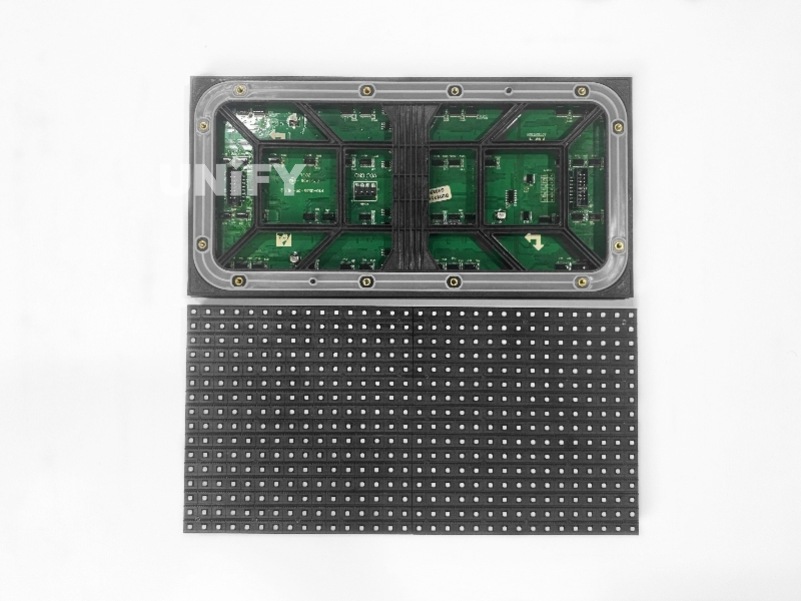

Printed Circuit Board
Driver IC

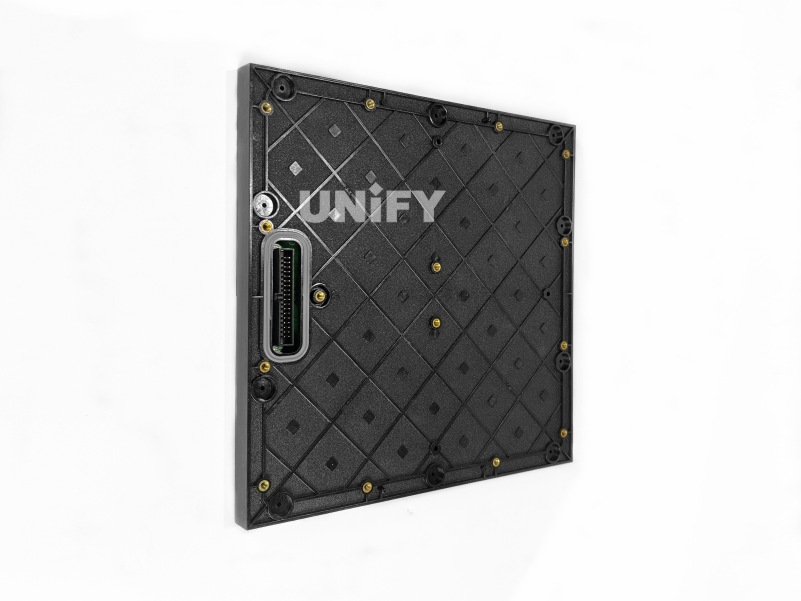

Power Ports:
Signal Ports
Key Features
High-definition
Provides high-resolution and delicate image display to ensure that the content is presented clearly and delicately, suitable for close-up viewing.
Energy saving
Adopts low-power design to reduce energy consumption, reduce long-term operating costs, and extend the service life of the display.
Modular design:
Flexible modular structure, you can freely splice screens of different sizes and shapes according to needs to meet a variety of display needs.
Wide viewing angle
High contrast and wide viewing angle design, no matter from which angle the image is viewed, it remains stable and clear, providing consistent visual effects.
Easy to install
The modular design makes installation and maintenance easier, reduces manpower and time costs, improves efficiency, and supports front and back maintenance.
Intelligent control system:
It can remotely manage content, adjust brightness, time switch, etc. It is very convenient to operate and can make work more efficient.
Accurate color reproduction:
Good LED lamp beads and driver ICs can accurately reproduce colors and show real and bright visual effects, which are especially suitable for commercial displays.
Waterproof design:
By using high-performance waterproof coatings and sealing designs, it can effectively isolate moisture and dust from invading the circuit
Long life
The use of high-quality materials and advanced processes can improve the durability of the equipment, reduce the failure rate, ensure the long-term operation of the display, and save maintenance expenses.
320x160mm Series Outdoor LED Module
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P2.5mm | SMD1415 | 128*64 | SMD 3in1 | >5500 | 320*160 | 1/16Scan |
| P3.076mm | SMD1415 | 104*52 | SMD 3in1 | >5000 | 320*160 | 1/13Scan |
| P3.33mm | SMD1921 | 96*48 | SMD 3in1 | >5500 | 320*160 | 1/12Scan |
| P4mm | SMD1921 | 80*40 | SMD 3in1 | >5500 | 320*160 | 1/10Scan |
| P5mm | SMD1921 | 64*32 | SMD 3in1 | >5200 | 320*160 | 1/8Scan |
| P6.67mm | SMD3535 | 48*24 | SMD 3in1 | >5500 | 320*160 | 1/6Scan |
| P8mm | SMD3535 | 40*20 | SMD 3in1 | >5800 | 320*160 | 1/5Scan |
| P10mm | SMD3535 | 32*16 | SMD 3in1 | >6000 | 320*160 | 1/2Scan |
| P10mm | SMD3535 | 32*16 | SMD 3in1 | >4500 | 320*160 | 1/4Scan |
