-P1.25/P1.5/P1.8/P2/P2.5/P3mm

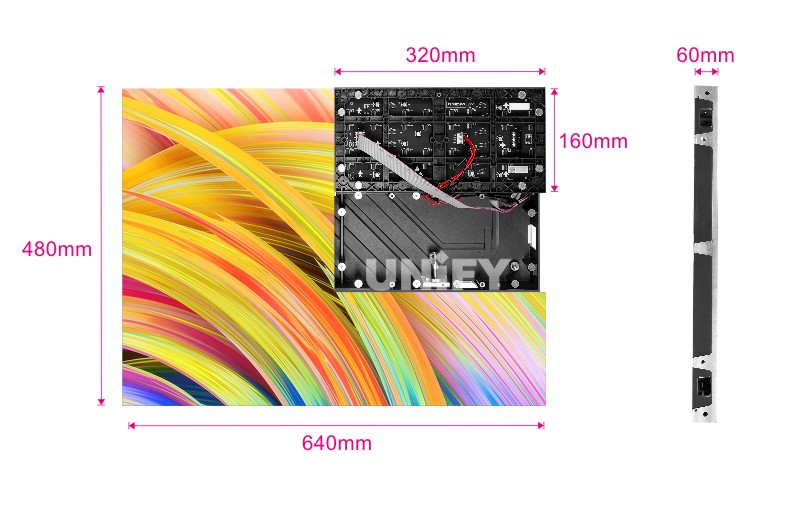

-Panel size 640*480mm, Module size 320*160mm

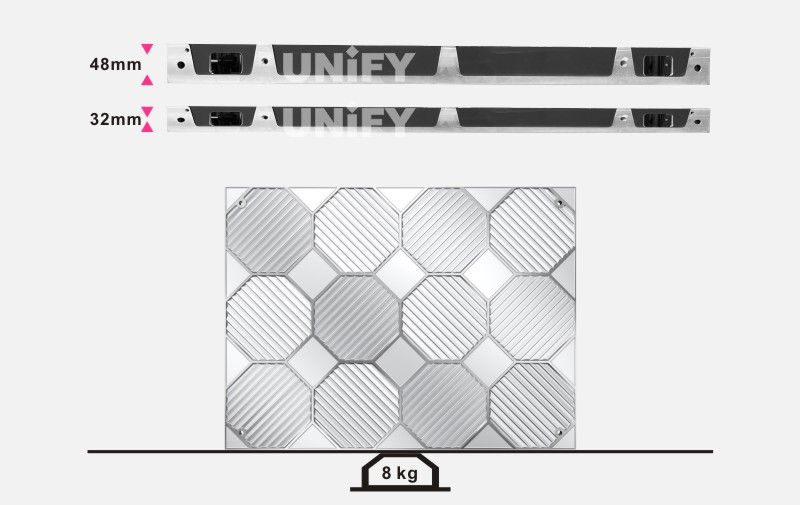

-Ultra-lightweight and Space-saving
-Wireless hard connection design
-Support power backup
-Support centralized control software
-Support Flsha storage

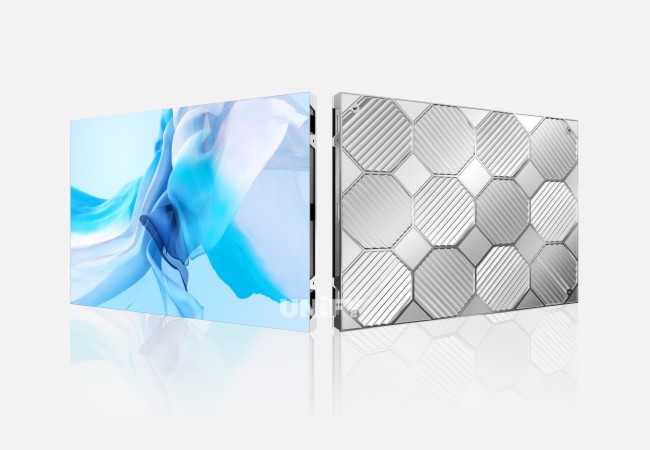

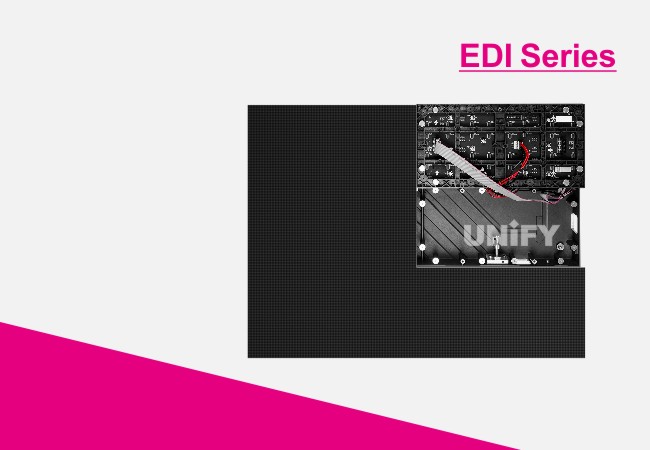

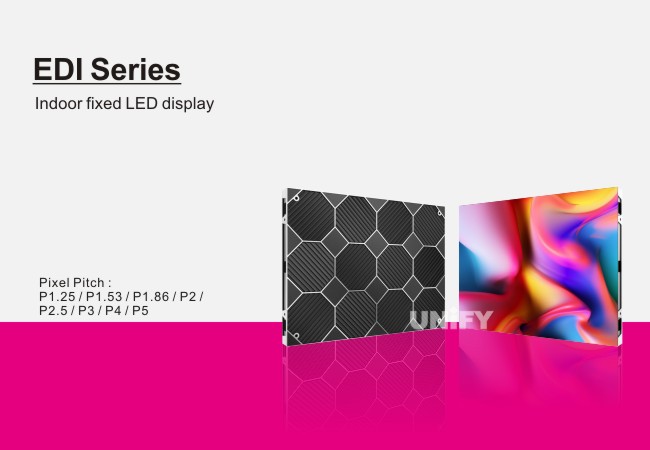

Unify LED’s EDI series indoor LED display – crystal-clear visuals with pixel pitches from P1.2 to P3

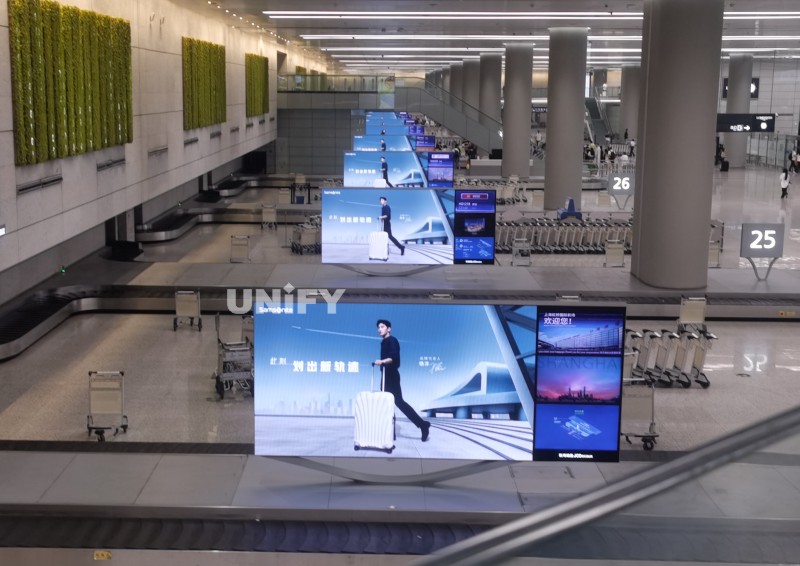

Where does Unify LED EDI （indoor led display board）series shine?

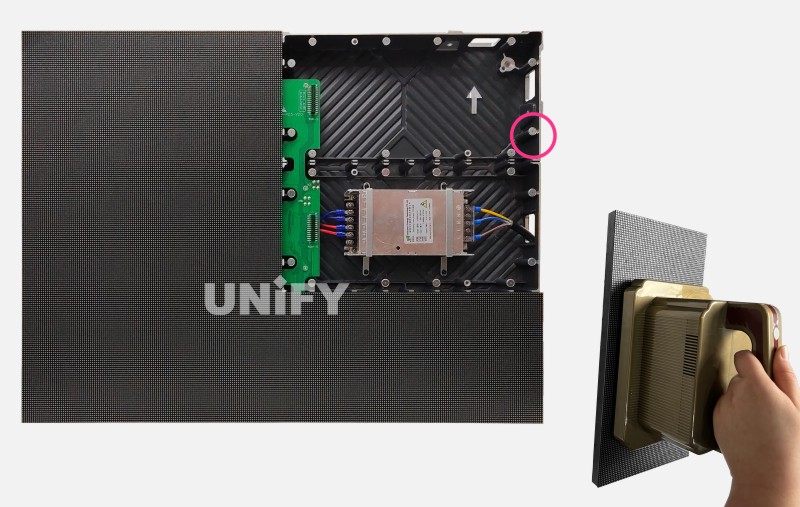

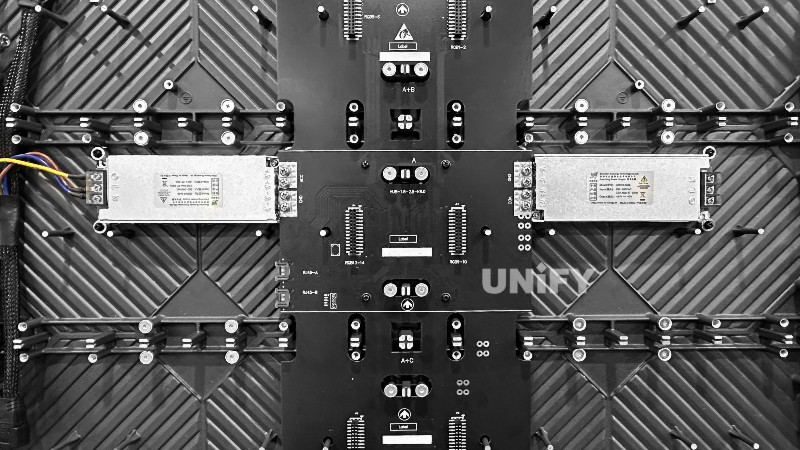

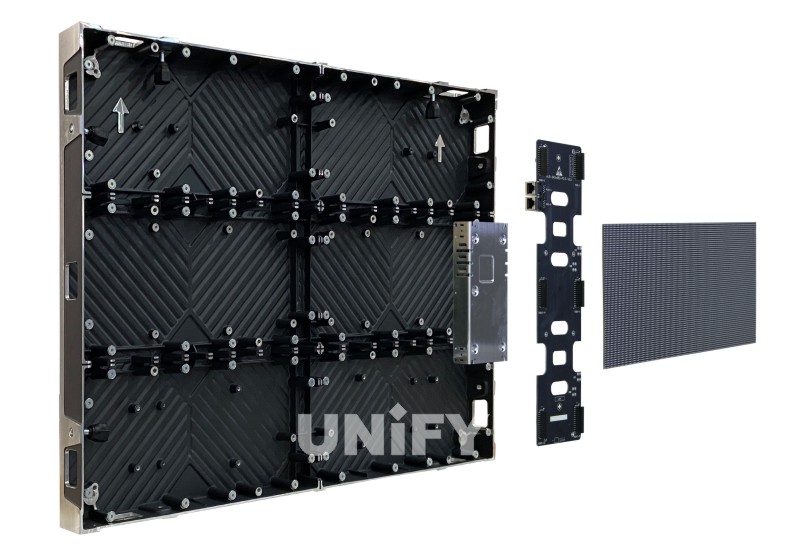

Indoor fixed led display Unify EDI series – easy installation with front-service magnetic modules
Unify LED EDI series– built for indoor led display wall reliability. Save energy, save time.
Indoor led video wall EDI series – your indoor visual solution.
Technical highlights of indoor full color led display–EDI Series
| Vaiue | P1.2 | P1.5 | P1.8 | P2 | P2.5 | P3 |
| Module Size | 320x 160mm | |||||
| Physical Resolution (Wx H) | 256×128dots | 208×104dots | 172×86dots | 160×80dots | 128×64dots | 104×52dots |
| Pixel Configuration | SMD | |||||
| Brightness | 800 cd/m² | |||||
| Pixel Matrix/Sqm | 640,000dots/m² | 422.500dots/m² | 288,906dots/m² | 250,000dots/m² | 160.000dots/m² | 105,625dots/m² |
| Minimum Viewing Distance | P1.2 meters | P1.5 meters | P1.8 meters | P2 meters | P2.5 meters | P3 meters |
| Gray scale | 65,536 levels per color | |||||
| Refresh frequency | 3840/1920Hertz | |||||
| Input power frequency | 50 or 60 Hertz | |||||
| Input Voltage | 100-240 | |||||
| Ingress Protection | 1P30 | |||||
| Max Power Consumption | 800W/m2 | |||||
| Average Power Consumption | 300W/m² | |||||
| Viewing Angle | Horizontal 140 deg;Vertical 140 deg | |||||
| Operating environment | Temperature;-20℃+60℃;Humidity: 10%-90%RH | |||||
Explore the ultimate 3D vs IMAX format guide. We compare Real 3D, Dolby Cinema, and IMAX specs, revealing why Direct-View LED screens are replacing traditional movie projectors to become the future of cinema.
Master LED display grayscale performance. Discover how bit-depth, PWM, and calibration determine shadow detail and gradient smoothness.
Maximize ROI with our LED rental screen Philippines guide. Learn P3.91 profit secrets, labor-saving setup, and DDP shipping. Contact our factory for 2026 wholesale prices!
Master the market with a durable Outdoor LED billboard Philippines. 2026 technical guide on typhoon-proof design, ROI analysis & factory-direct pricing for Manila & Cebu.
Make every show unforgettable with UnifyLED LED screen for events—vivid colors, reliable performance, and quick setup.
Boost visibility with our LED Screen for Advertising Outdoor. High brightness, common cathode tech, and easy maintenance.
Upgrade visibility with an outdoor LED screen. Perfect for ads, events, or stadiums—explore features, pricing, and smart choices today!
Why choose a front-maintenance magnetic LED screen? The EDI series gives you an efficient display solution!
In today’s world of commercial display, the front-maintenance magnetic LED screen has really changed the way indoor LED displays are installed and maintained.
As a star product in the industry, the EDI series has successfully solved many problems encountered by traditional LED screens in later maintenance with its innovative magnetic module design, ultra-thin appearance and intelligent maintenance system.
Whether in a luxurious conference room, smart exhibition hall, or large commercial center, the EDI series can provide the installation advantage of “zero space restriction” and the ultra-high efficiency of “maintenance within a few minutes”.

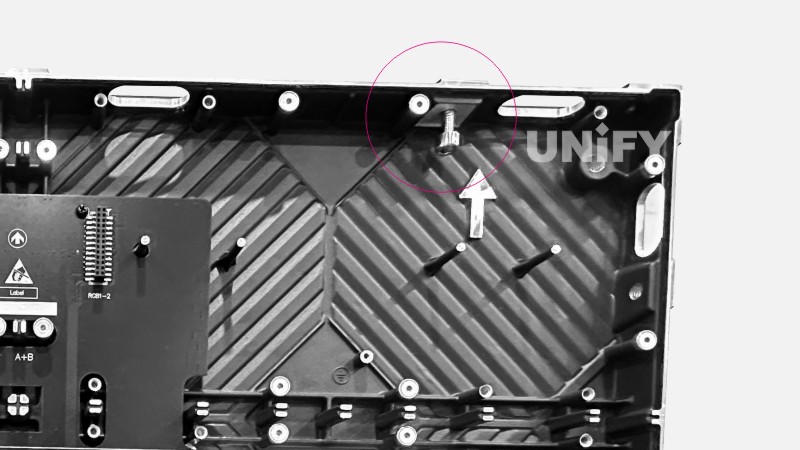

The EDI series uses military-grade magnetic lock technology, and the adsorption force of a single LED module is as high as 50kg, which ensures the stability of the screen while realizing “front disassembly and front installation”.
This innovative design reduces the screen thickness to 1/3 of traditional products and reduces the installation space requirement by 70%.

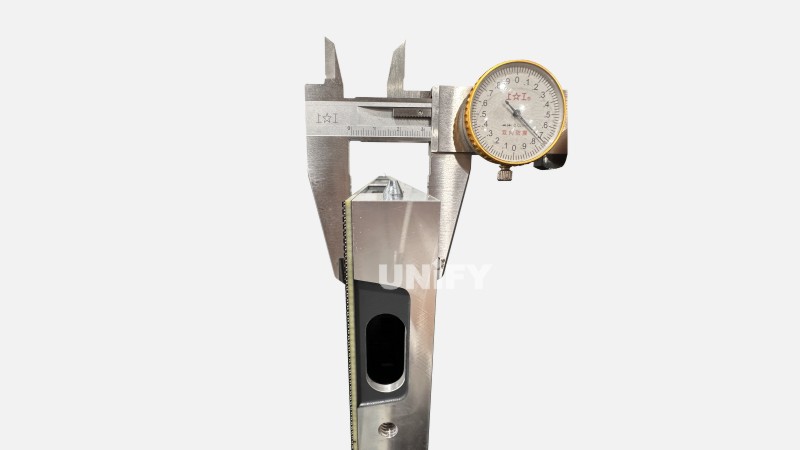

The extremely slim body of 6cm, combined with the magnetic cabinet splicing technology, controls the screen installation error within 0.1mm, perfectly presenting a seamless visual experience.
The “dual-circulation cooling” achieved through the front maintenance channel improves the cooling efficiency by 40% compared with the traditional air cooling system, ensuring that the screen can still operate stably under 7×24 hours of high-intensity use.
–The commercial value of the front maintenance LED screen

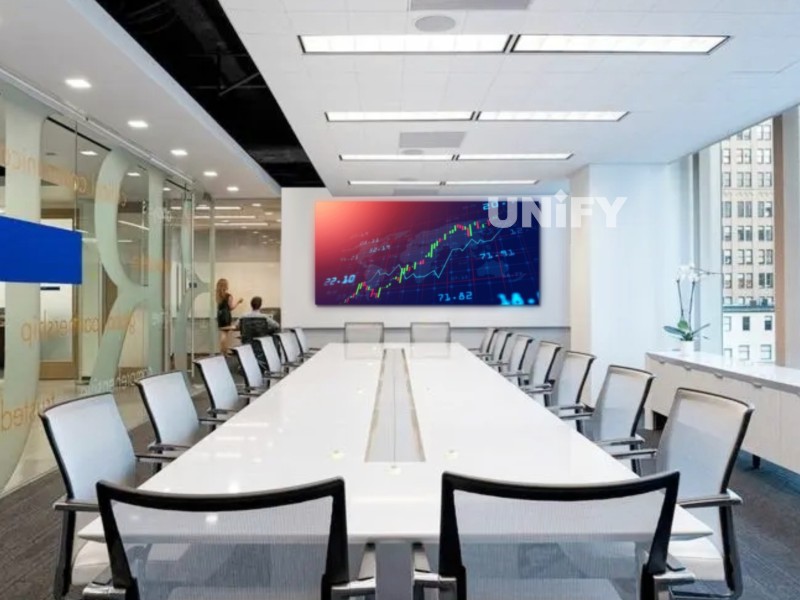

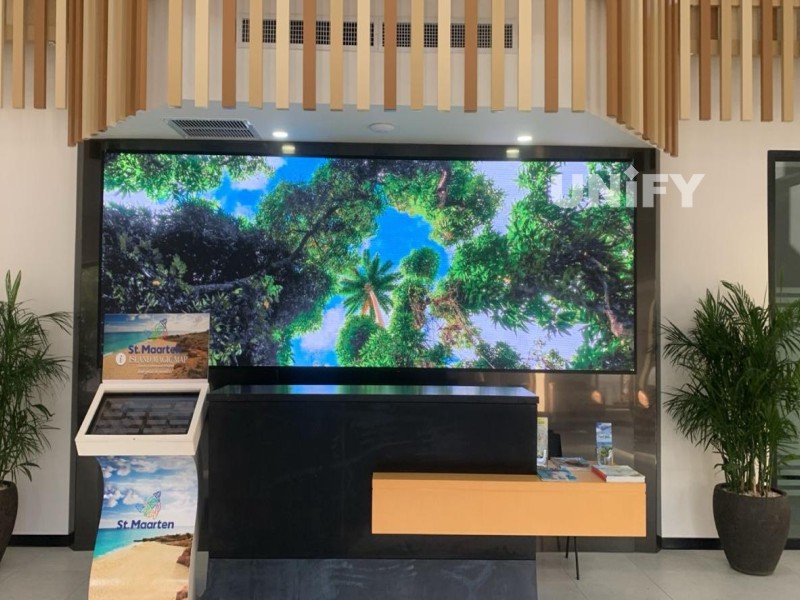

With its small pixel pitch and 1000nit ultra-high brightness, the EDI-A series has become the first choice for multinational video conferencing and virtual studios.
Its front maintenance design makes the layout of the conference room no longer restricted by the maintenance channel, and the screen can be directly embedded in the wall.
The arc splicing capability and HDR10+ color restoration technology of the EDI-B series create an immersive visual space for museums and science and technology museums. The magnetic module supports the rapid replacement of theme images, and the exhibition efficiency is increased by 60%.
The intelligent split-screen function and compatibility design of the EDI-C series can simultaneously access the monitoring system, advertising system, and emergency command system.
The front maintenance feature allows the mall to complete screen maintenance during business hours.
Compared with traditional indoor LED displays, the EDI series has three major advantages in life cycle costs:
Installation costs are reduced by 50%: no maintenance channel is required, saving steel structure and space costs.
Maintenance efficiency is increased by 300%: a single person can complete module replacement in 5 minutes, reducing labor costs by 70%.
Energy consumption is saved by 20%: the intelligent cooling system reduces the air conditioning load and cooperates with energy-saving modules to achieve comprehensive energy saving.
Based on the actual usage scenario, we recommend:

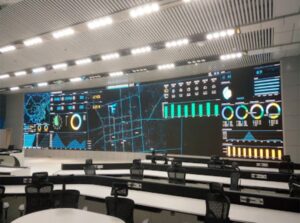

1.2mm EDI : suitable for high-end conference rooms and command centers with a viewing distance of more than 2 meters
1.8mm EDI: exhibition halls, shopping malls, and studios that meet viewing needs of more than 3 meters
3mm EDI: Creating super-large stage rental and stadium LED screens
We know that the reliability of display equipment is crucial:
Military-grade magnetic suction system: passed 2 million plug-in and pull-out tests, with a load-bearing capacity of 50kg
Intelligent temperature control technology: built-in temperature sensor realizes automatic wind speed adjustment
IP45 protection level: dustproof and waterproof design adapts to the needs of multi-scene use
Five-year warranty commitment: industry-leading full-module warranty policy
CCC China Compulsory Certification
CE EU Safety Certification
RoHS Environmental Certification
FCC Electromagnetic Compatibility Certification
The leap from traditional LED display to front maintenance magnetic suction screen is not only a technology upgrade but also an efficiency revolution. Through innovative design, the EDI series can:
Save 30% installation time
Reduce maintenance costs by 45%
Increase space utilization by 200%
Contact our display solution experts now to get customized configuration solutions and on-site demonstration opportunities for the EDI series.
Whether it is a rental LED screen, a fixed installation display, or a special application that requires special-shaped splicing, we can create a dedicated front-maintenance LED solution for you.
